Manual Stages &Positioners
The complete Zolix manual stage catalog — from ultra-high precision crossed-roller linear stages to multi-axis combined positioners. Sub-micron sensitivity across linear, vertical, rotary, and goniometer axes.
≤ 1 µm
NFP Sensitivity
Crossed-roller ultra-precision
≤ 2 µm
SK / AK Sensitivity
Stainless & aluminum series
0.68′
Rotation Precision
SKR arc-minute sensitivity
6-Axis
AAK Combined
XYZ + θx θy θz stacks
By submitting your request enquiry we will forward all relevant details regarding full specifications, step files, pricing, and any other necessary information you require.
Need a tailored setup? If you also need, we can organize a technical meeting to discuss and design the best solution that fits your specific application.
Interactive Configurator
Manual Stage & Positioner Configurator
Need a specific travel range, axes combination, table size, or custom configuration? Select the variables below to compile your model number. Add it to the enquiry and we will arrange the step files, pricing, or custom solution for your setup.
NFP: SUS304 crossed-roller, ultra-precision (<= 1 µm)
NFP Crossed-Roller High Precision Stage
Identified Model Reference
NFP-1461C
Specifications
- Material: SUS304 Sandblasted Stainless Steel
- Axes: SINGLE
- Travel: 13 mm per axis
- Table Size: 40x40 mm
- Drive Layout: C
- Sensitivity: <= 1 µm
- Crossed-roller guide structure
We will match this configuration with Zolix Instruments models and provide the relevant pricing, STEP files, and technical solution.
Zolix Instruments
Manual Linear Stages
Five complementary series covering every precision tier — from ≤1 µm ultra-precision NFP crossed-roller stages for fiber coupling and DPSS laser alignment, to high-load AD rack-and-pinion rails for fast coarse positioning.

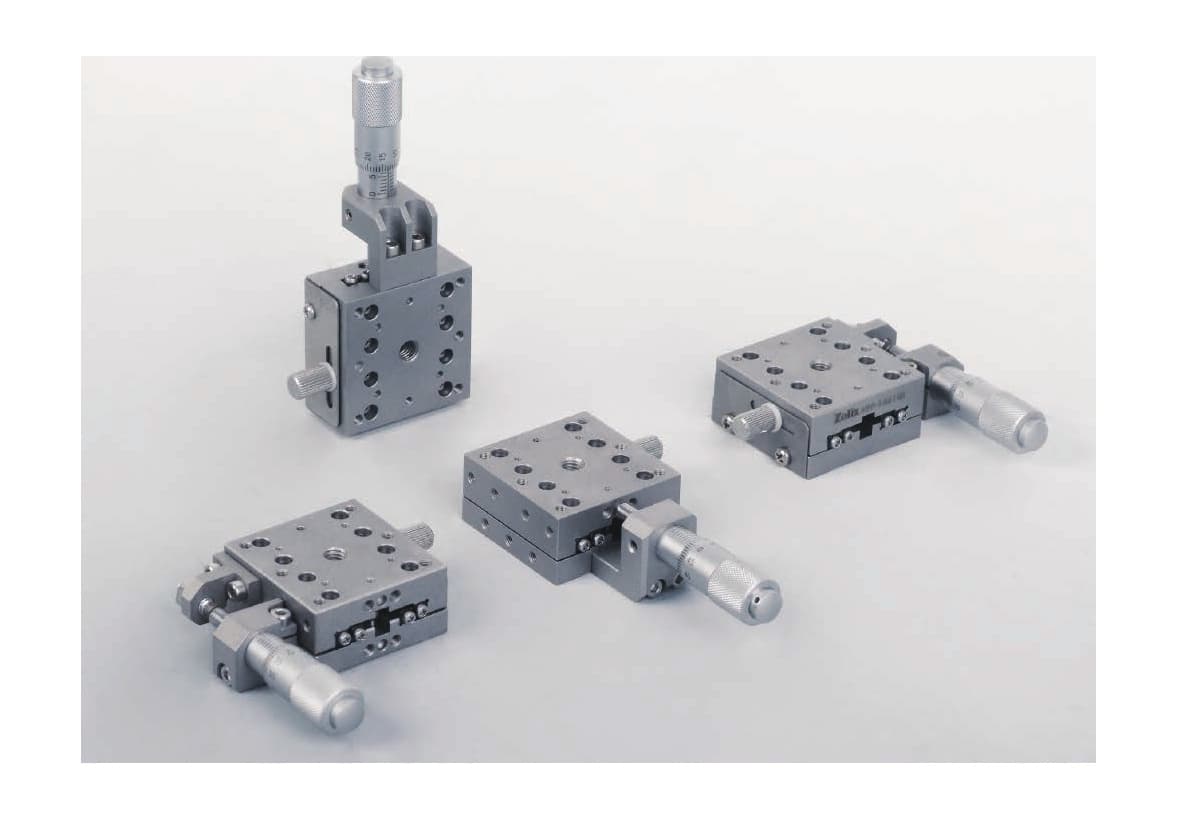

NFP Series
Crossed-Roller Bearing High Precision Linear Stages
304 stainless steel body, precision crossed-roller guide, micrometer drive. Sensitivity ≤1 µm, straightness ≤3 µm. Ideal for fiber coupling, optical waveguide alignment, DPSS laser components, and vacuum applications.
Sensitivity
≤ 1 µm
Min. micrometer reading
0.01 mm
Straightness
≤ 3 µm
Material
SUS304, sandblasted
Models — NFP-x461 (40×40 mm) & NFP-x462 (65×65 mm)
| Series | Travel | Surface | Drive variants |
|---|---|---|---|
| NFP-1461 | 13 mm | 40×40 mm | C / SR / SL / CZ |
| NFP-1462 | 25 mm | 65×65 mm | C / SR / SL / CZ |
| NFP-2461 (XY) | 13 mm | 40×40 mm | CC / CC-L / LL / RR |
| NFP-2462 (XY) | 25 mm | 65×65 mm | CC / CC-L / LL / RR |
| NFP-3461 (XYZ) | 13 mm | 40×40 mm | CCZ / CCZ-L / LLZ / RRZ |
| NFP-3462 (XYZ) | 25 mm | 65×65 mm | CCZ / CCZ-L / LLZ / RRZ |
Naming: NFP-1461 SR — NFP · 1 axis · 461 (40×40 mm) · SR (right drive). CZ = central & vertical.

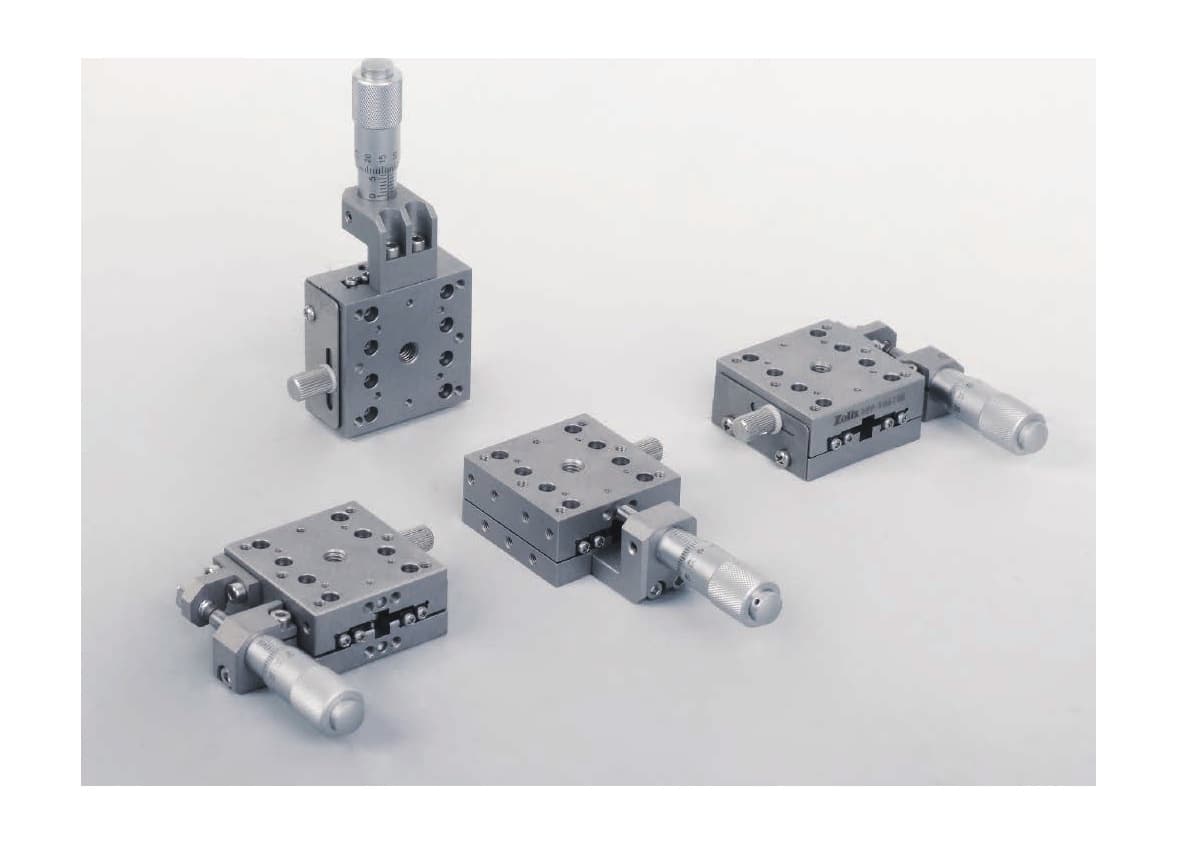

SK Series — Stainless Steel High Precision
Sensitivity ≤ 2 µm · Vacuum compatible
304 stainless steel, crossed-roller guide. Micrometer (A) or fine-tuning screw drive. High load capacity, suitable for most application environments including vacuum.
| Model family | Travel | Surface | Load (H/V) |
|---|---|---|---|
| SK13(A)-40 | 13 mm | 40×40 mm | 5 / 1.5 kg |
| SK13(A)-60 | 13 mm | 60×60 mm | 6 / 2 kg |
| SK25(A)-65 | 25 mm | 65×65 mm | 7 / 2.5 kg |
Drive variants: C · SR · SL · CZ. Add "A" for micrometer (e.g., SK13A-40SR).

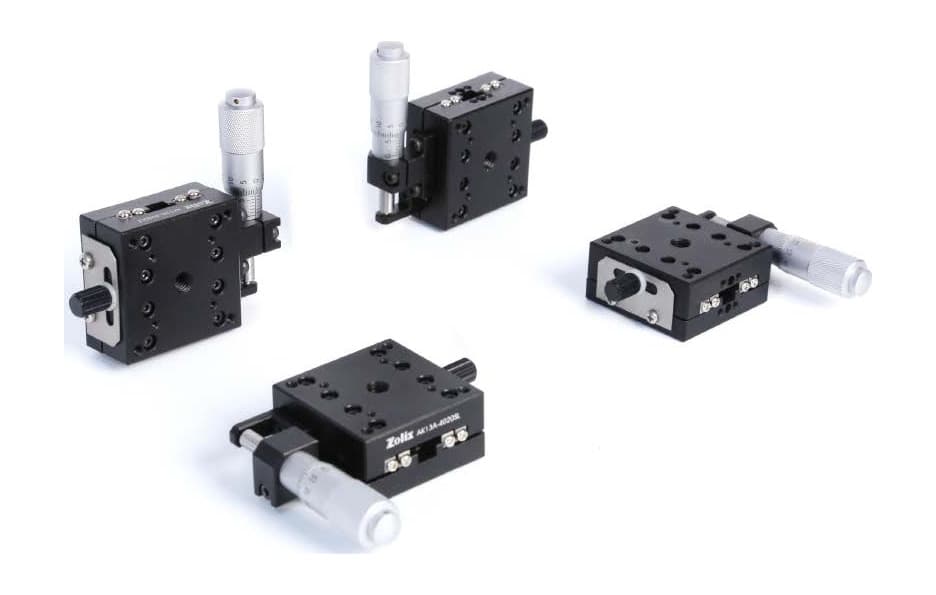

AK Series — Aluminum Alloy Crossed-Roller
Sensitivity ≤ 2 µm · Black anodized · FA-stage
Hard aluminum alloy, black anodized finish for low reflectivity and dark environments. High load capacity, multiple table sizes from 40 mm to 100 mm. Screw or micrometer drive.
| Model family | Travel | Surface | H load |
|---|---|---|---|
| AK13(A)-4020 | 13 mm | 40×40 mm | 2 kg |
| AK13(A)-6020 | 13 mm | 60×60 mm | 5 kg |
| AK25(A)-6520 | 25 mm | 65×65 mm | 6 kg |
| AK25(A)-8020 | 25 mm | 80×80 mm | 10 kg |
| AK25(A)-10020 | 25 mm | 100×100 mm | 15 kg |
Drive variants: C · SR · SL · CZ · RZ · LZ. Add "A" for micrometer.

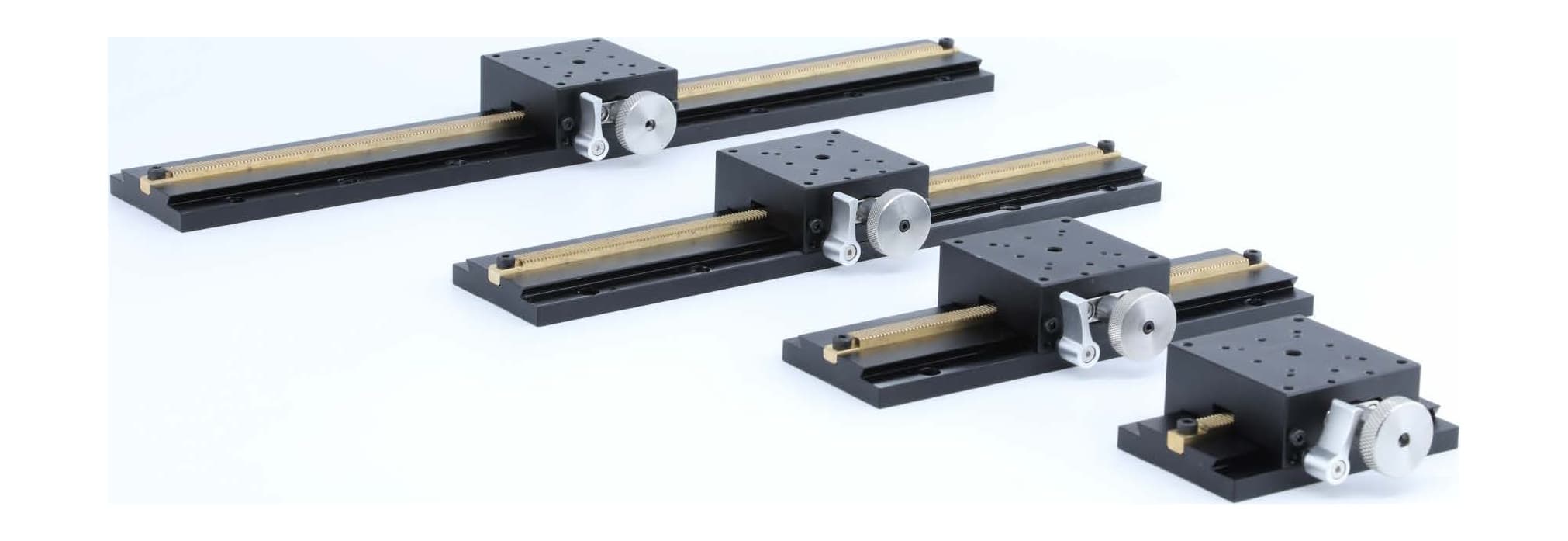

AD Series — Rack & Pinion Long-Travel
40 – 360 mm travel · Dovetail guide · High load 5–6 kg
Aluminum alloy, black anodized. Rack-and-pinion (m=0.5) with dovetail guide. Fast adjustment with locking function. Vernier scale minimum reading 0.1 mm. Double-slider D1/D2 variants available for tandem drives.
40×40 mm surface
- AD60C-40 — 60 mm
- AD160C-40 — 160 mm
- AD260C-40 — 260 mm
- AD360C-40 — 360 mm
60×60 mm surface
- AD40C-60 — 40 mm
- AD140C-60 — 140 mm
- AD240C-60 — 240 mm
- AD340C-60 — 340 mm

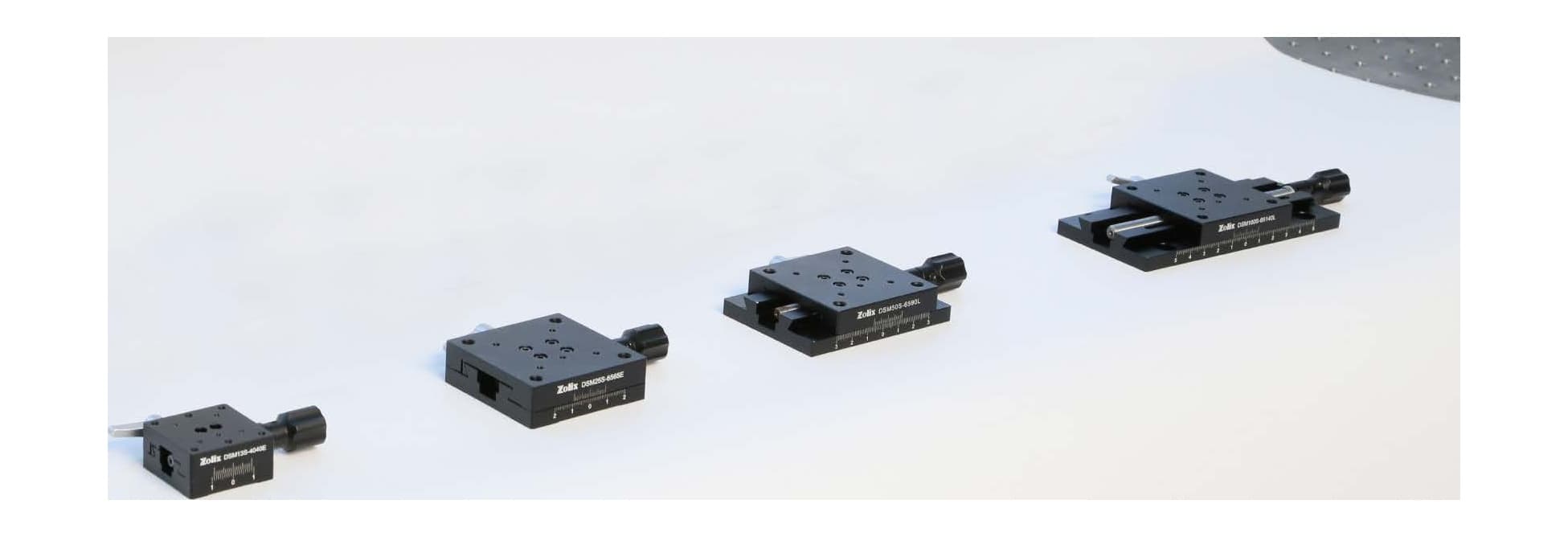

DSM Series — Dovetail Guide Linear Stages
13 – 100 mm travel · Grinding lead screw · Vernier scale
Black anodized aluminum, dovetail guide, grinding lead screw (Φ6×0.5 to Φ8×1). High stability with locking function. Vernier minimum reading 0.1 mm. Not suited for large travel; optimized for high sensitivity at moderate displacement.
| Model | Travel | Surface | H load | Enquiry |
|---|---|---|---|---|
| DSM13S-4040E | 13 mm | 40×40 mm | 5 kg | |
| DSM20S-6060E | 20 mm | 60×60 mm | 8 kg | |
| DSM25S-6565E | 25 mm | 65×65 mm | 10 kg | |
| DSM50S-6590L | 50 mm | 65×65 mm | 10 kg | |
| DSM100S-65140L | 100 mm | 65×65 mm | 10 kg |
Z-Axis Positioning
Manual Vertical Positioners
Three series covering sub-micron vertical precision (SKV/AKV) up to heavy-duty lab jacks with 240 mm stroke and 40 kg load capacity (MJ).

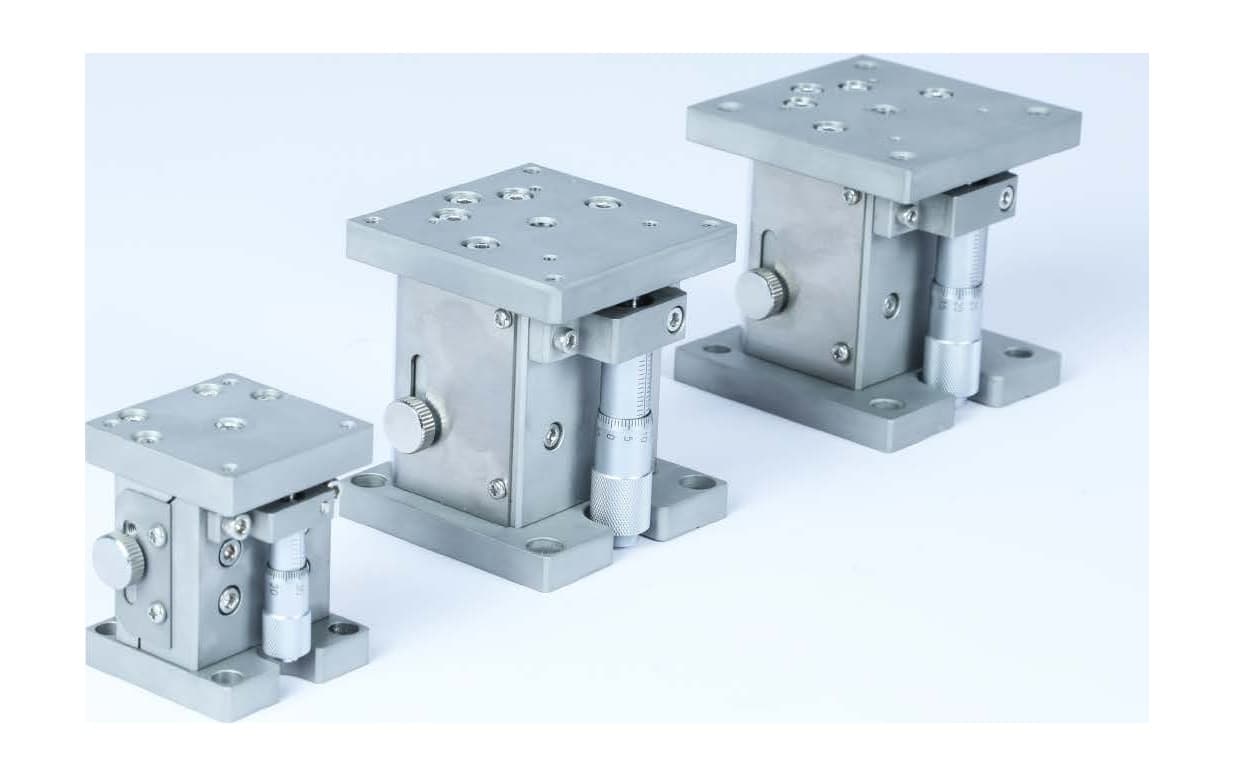

SKV Series
Stainless Steel · High Precision Vertical
SUS304 body, linear-slider guide, micrometer drive. Directly-lift structure. Sensitivity ≤2 µm, static parallelism ≤100 µm. Combinable with other stages.
| Model | Travel | Surface | Enquiry |
|---|---|---|---|
| SKV6A-40Z | 6 mm | 40×40 mm | |
| SKV13A-60Z | 13 mm | 60×60 mm | |
| SKV13A-65Z | 13 mm | 65×65 mm |
Load ≤3 kg · Height range 51–79.5 mm

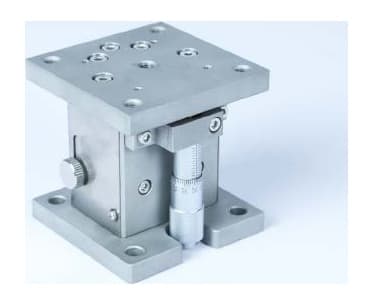

AKV Series
Aluminum Alloy · High Precision Vertical · Black Anodized
Black anodized aluminum, linear-slider guide. Two lift mechanisms: directly-lift (Z drive) and lever-lift (C drive). Suitable for dark environments. Sensitivity ≤2 µm.
| Model | Travel | Surface | Enquiry |
|---|---|---|---|
| AKV6A-40Z | 6 mm | 40×40 mm | |
| AKV6A-40C | 6 mm | 40×40 mm | |
| AKV13A-60Z | 13 mm | 60×60 mm | |
| AKV10A-60C | 10 mm | 60×60 mm | |
| AKV13A-65Z | 13 mm | 65×65 mm | |
| AKV10A-90C | 10 mm | 90×90 mm |
Z = vertical drive · C = horizontal (lever) drive · Load ≤3 kg

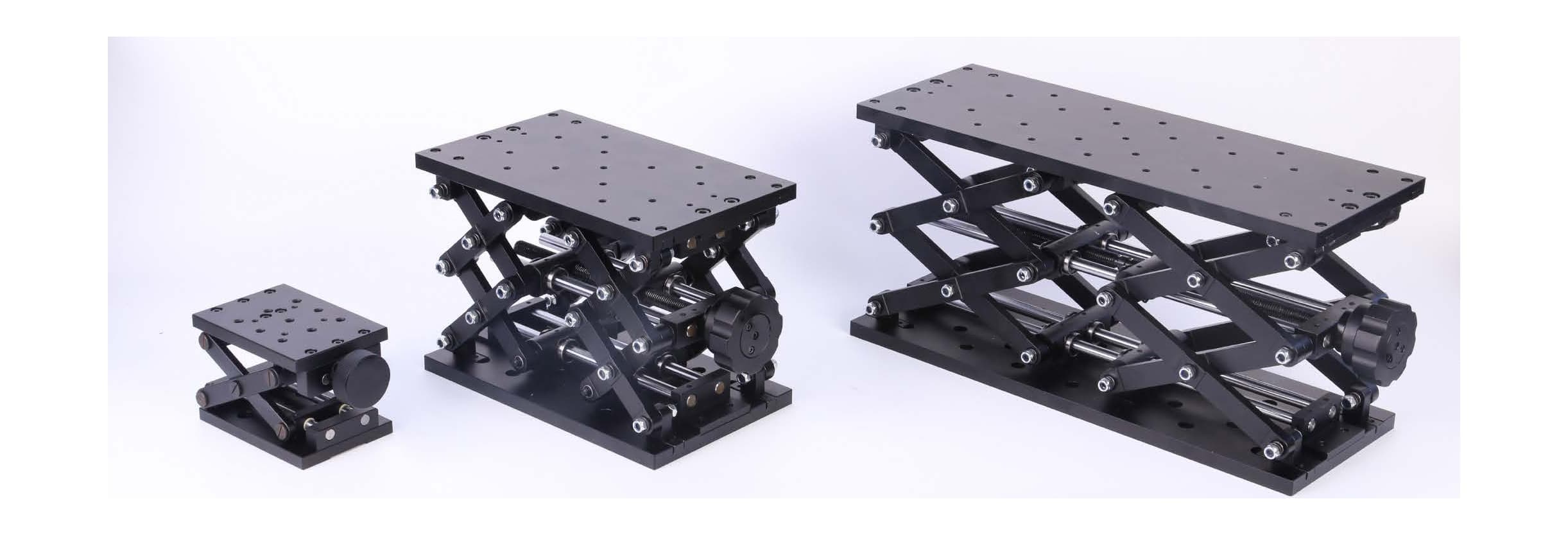

MJ Series
High-Load Lab Jack · Scissor Structure · Large Stroke
Aluminum alloy, black anodized. Shear-lifting scissor mechanism for long Z travel and high load. Fine lead-screw drive. Excellent for sample elevation and optical table height adjustment.
| Model | Travel | Surface | Load | Enquiry |
|---|---|---|---|---|
| MJ60 | 60 mm | 120×80 | 10 kg | |
| MJ120 | 120 mm | 250×150 | 30 kg | |
| MJ240 | 240 mm | 400×150 | 40 kg |
Two-way lead screw on MJ120/MJ240 · Φ12×1.75 pitch
Theta-Z Positioning · FA-stage
Manual Rotation Stages
360° coarse + 10° fine-tuning micrometer-driven rotation stages. Stainless (SKR) and black-anodized aluminum (AKR) variants up to Φ120 mm, with crossed-roller ring or angular contact ball bearing.

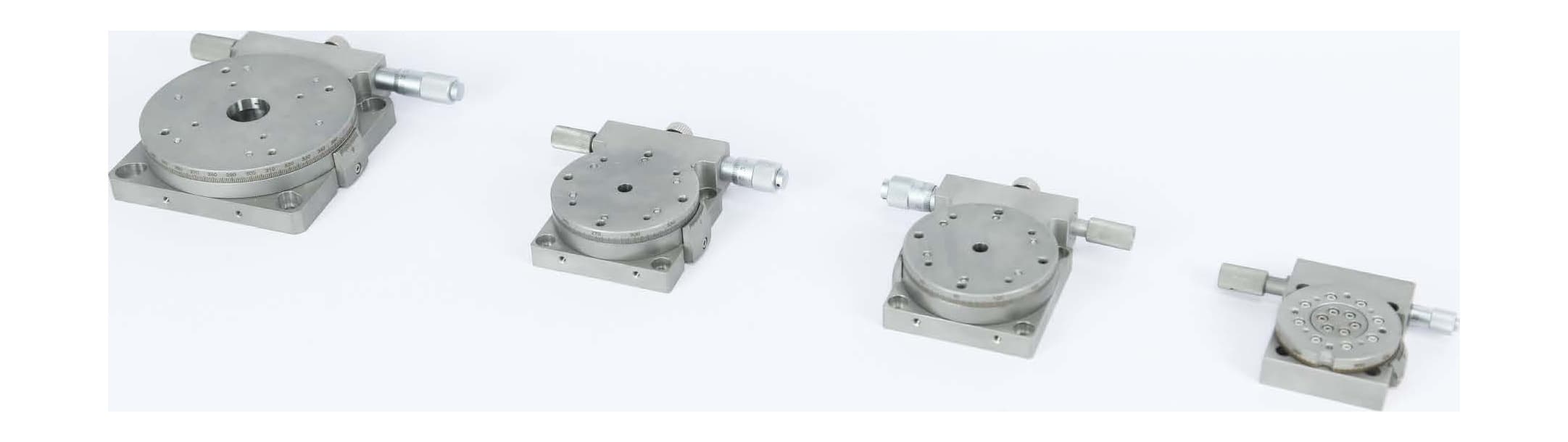

SKR Series — Stainless Steel
Sensitivity 0.68 arc-minutes · High rigidity
High-rigidity SUS304 stainless steel body. 360° coarse + 10° fine adjustment via micrometer. Crossed-roller ring (Φ60/90) or angular contact ball bearing (Φ45). Vernier minimum reading 0.1°.
| Model | Diameter | Sensitivity | Load | Enquiry |
|---|---|---|---|---|
| SKR10A-45 | Φ45 mm | 1.21′ | 1.5 kgBall bearing | |
| SKR10A-60 | Φ60 mm | 0.95′ | 2 kg | |
| SKR10A-60R | Φ60 mm | 0.95′ | 2 kgWorm drive | |
| SKR10A-90 | Φ90 mm | 0.68′ | 3 kg |

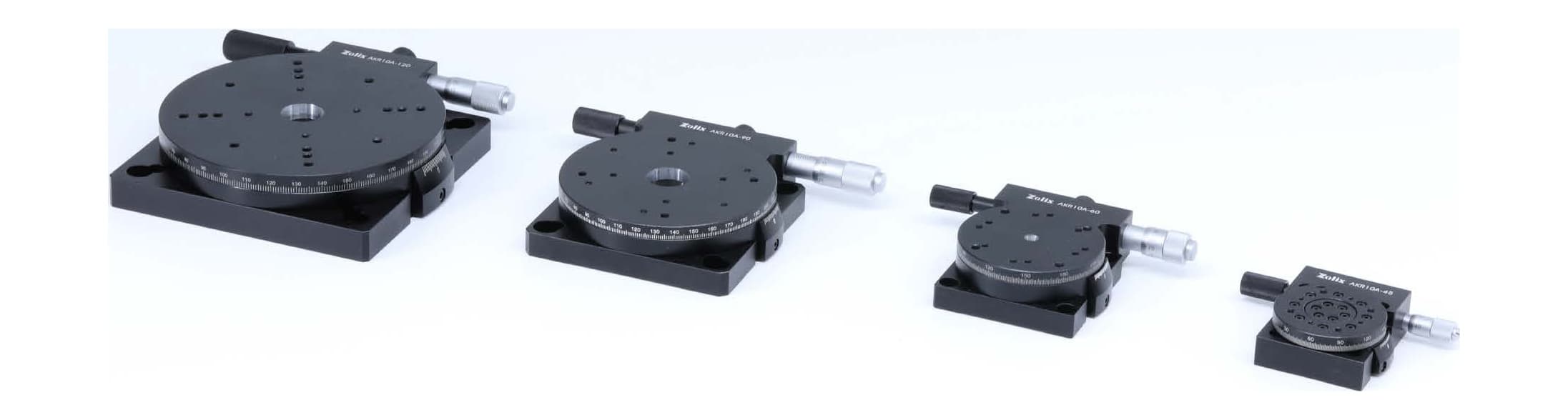

AKR Series — Aluminum Alloy
Ultra-thin · Black anodized · Low reflectivity
Black anodized aluminum, ultra-thin profile (20–30 mm thick). Crossed-roller ring guide, micrometer drive. Strong load capacity. Suitable for dark environments. Vernier minimum reading 0.1°.
| Model | Diameter | Sensitivity | Load | Enquiry |
|---|---|---|---|---|
| AKR10A-45 | Φ45 mm | 1.21′ | 1.5 kg | |
| AKR10A-60 | Φ60 mm | 0.95′ | 2 kg | |
| AKR10A-90 | Φ90 mm | 0.68′ | 3 kg | |
| AKR10A-120 | Φ120 mm | 0.49′ | 3 kg |
Φ45 uses angular contact ball bearing · Φ60/90/120 use crossed-roller ring
Angular Tilt Positioning
Manual Goniometers
Three series for angular tilt adjustment: MGON (arc-v ball guide, ±4–7°), AKG (worm-gear driven, high sensitivity), and TSMG (stackable dovetail modules for bi-axial tilt).

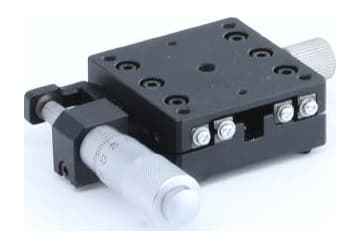

MGON Series
Arc-V Ball Guide · High Precision · ±4–7°
Black anodized aluminum, arc-v shape ball guide with micrometer drive. Run-out of center of rotation ≤15 µm. Vernier minimum reading 0.1°. Left (SL) and right (SR) drive variants.
| Model | Range | Center ht. | Enquiry |
|---|---|---|---|
| MGON40-40 | ±7° | 40 mm | |
| MGON57-40 | ±7° | 57 mm | |
| MGON50-60 | ±4° | 50 mm | |
| MGON75-60 | ±4° | 75 mm |
Surface: 40×40 mm (40/57) · 60×60 mm (50/75) · Load ≤3–5 kg

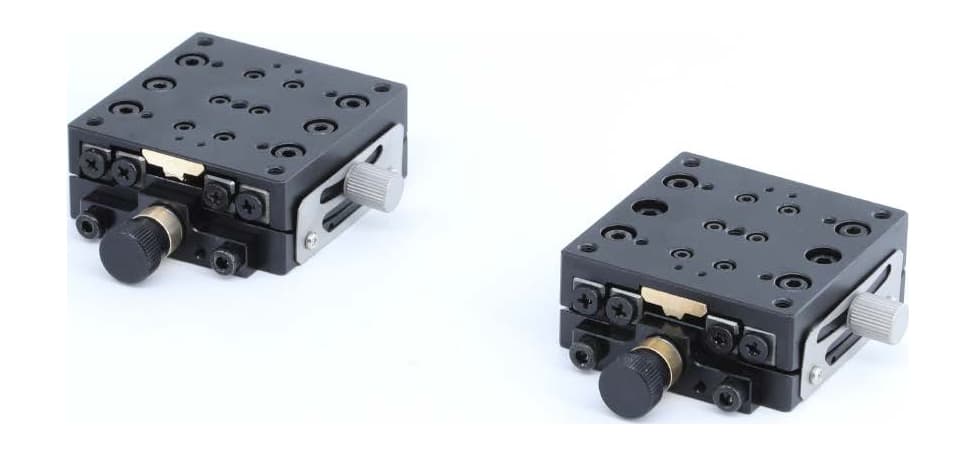

AKG Series
Worm-Gear Drive · Curved Crossed-Ball Guide · ±8–15°
Black anodized aluminum, curved crossed-ball guide, worm gear and worm drive. Runs stably with high sensitivity; suitable for demanding manual angle adjustment. Transmission ratio 235:1 to 352:1.
| Model | Range | Surface | Load | Enquiry |
|---|---|---|---|---|
| AKG57-40 | ±10° | 40×40 | 3 kg | |
| AKG40-40 | ±15° | 40×40 | 3 kg | |
| AKG75.5-65 | ±10° | 65×65 | 5 kg | |
| AKG50-65 | ±15° | 65×65 | 5 kg | |
| AKG50-60 | ±10° | 60×60 | 5 kg | |
| AKG75-60 | ±8° | 60×60 | 5 kg |

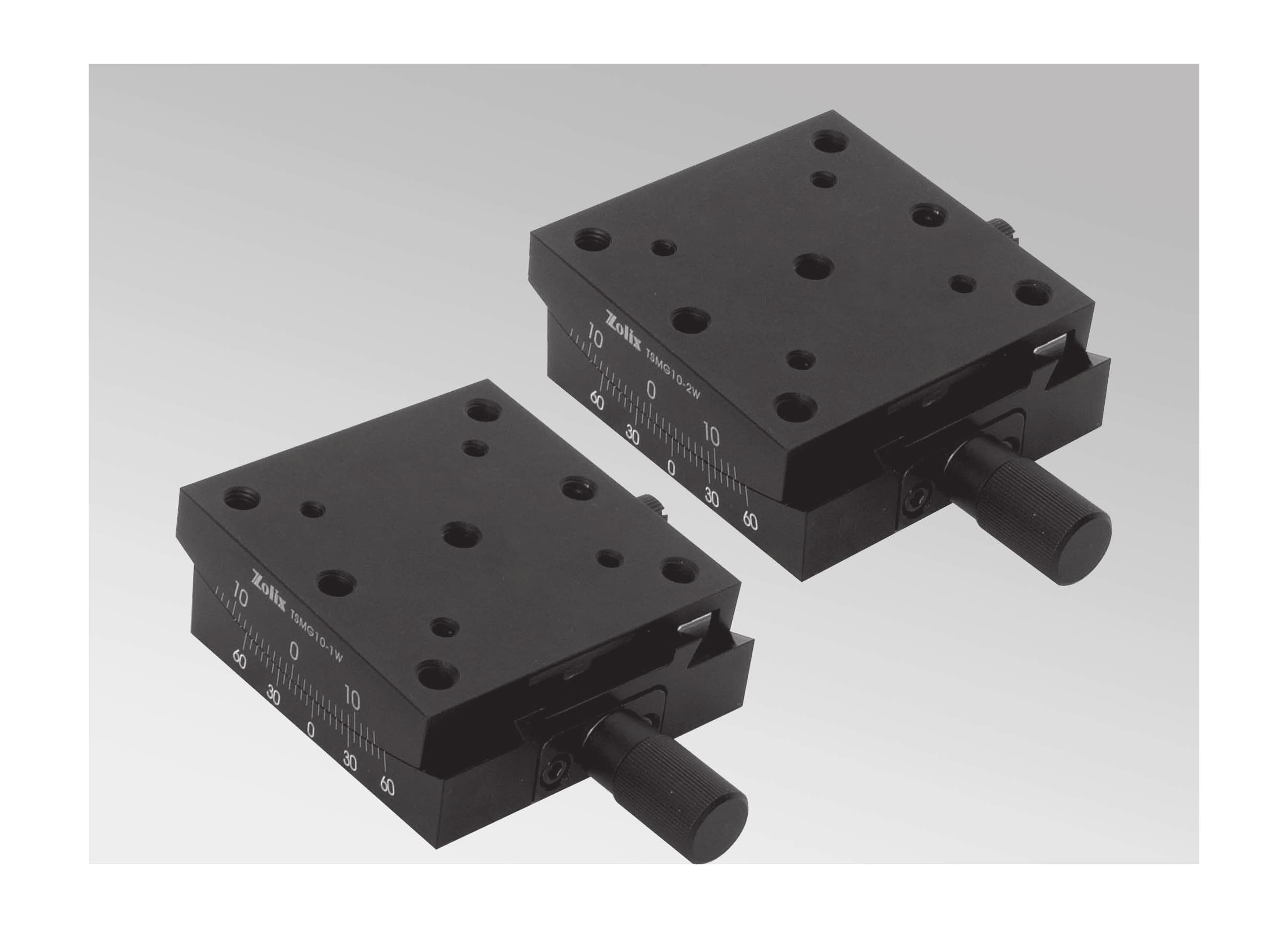

TSMG Series
Stackable Dovetail Goniometer · ±10° · Bi-axial
Black anodized aluminum, dovetail guide, worm-gear drive with hand-wheel lock. TSMG10-1W (lower) and TSMG10-2W (upper) can be used independently or stacked for two-axis tilt.
TSMG10-1W
Lower unit · center height 100 mm · ±10°
Stack bottomTSMG10-2W
Upper unit · center height 76 mm · ±10°
Stack topSurface: 65×65 mm · Load 2 kg · Vernier 5' resolution
Integrated Positioning
Multi-Axis & Combined Stages
Factory-assembled multi-axis positioning systems — from compact 5-axis XYZ-tilt linear stages (TSMW) to full 6-DOF combined stack assemblies (AAK).

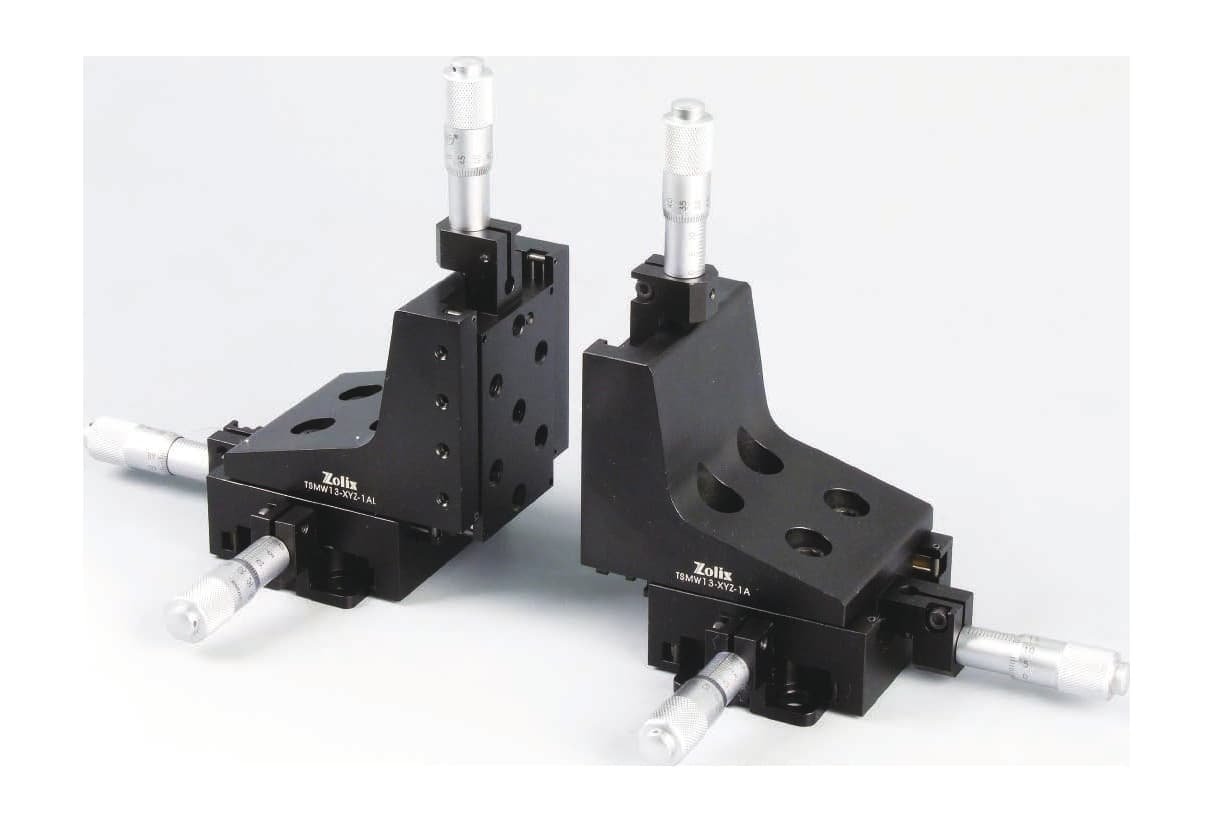

TSMW Series
Bearing Linear Stage · 13 mm XYZ Travel · Spring-Return
Compact 5-axis adjustment in a single unit. XYZ each 13 mm travel via linear ball guide and micrometer. Optional θy/θz ±5° tilt via screw. Right-hand (A) and left-hand (AL) variants. Load 2.5 kg.
TSMW13-XYZ-1A
X · Y · Z (13 mm each)
Micrometer
TSMW13-XYZ-1AL
X · Y · Z (13 mm each)
Micrometer — Left hand
TSMW-XYZT-1
X · Y · Z · θy · θz (±5°)
Micrometer + Screw
TSMW-XYZT-1L
X · Y · Z · θy · θz (±5°)
Micrometer + Screw — Left

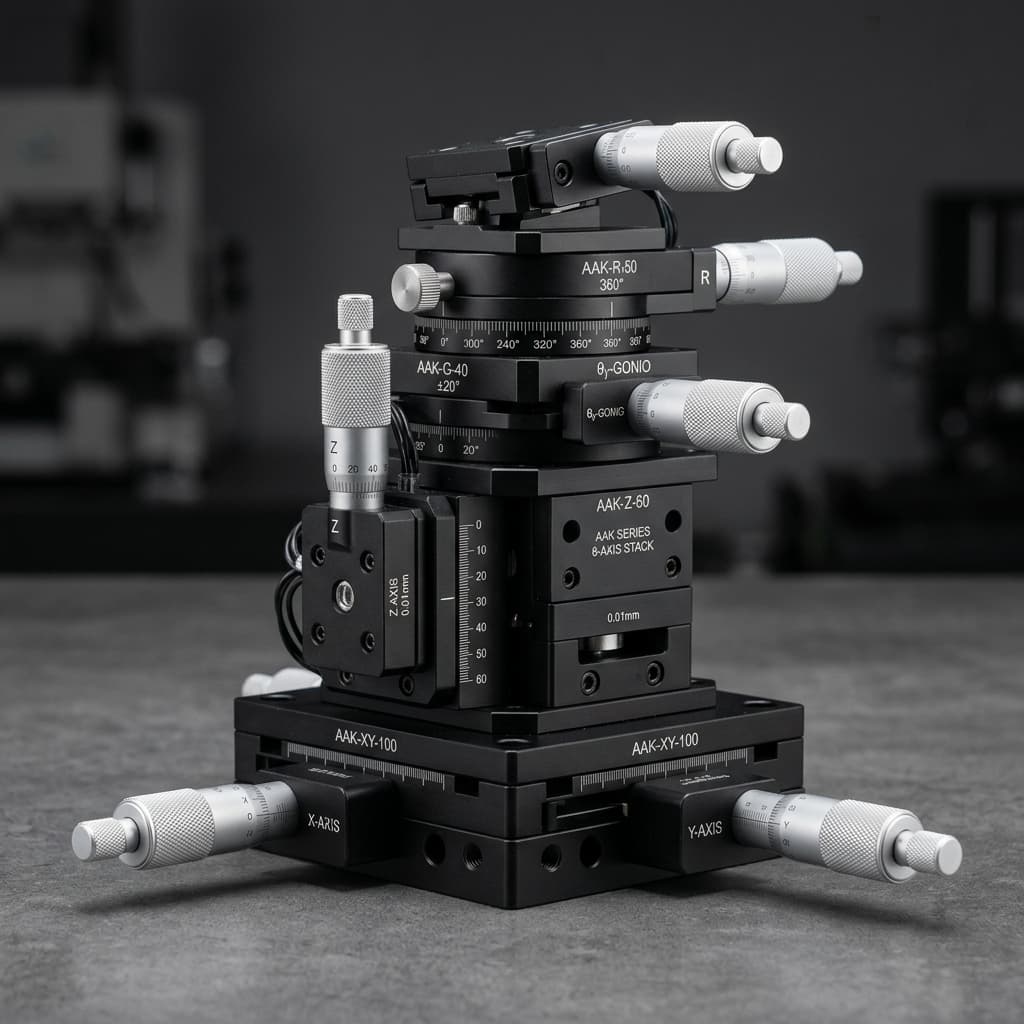

AAK Series — Combined Manual Stages
Based on AK series · 60×60 mm · 3 to 6 axes
Pre-assembled multi-axis stacks using AK13A (X/Y), AKV13A (Z), AKR10A (θz), AKG75 (θx), and AKG50 (θy) components. Left (L) and right (R) drive configurations. Compact and cost-effective.
| Model | Axes | Load | Weight | Enquiry |
|---|---|---|---|---|
| AAK3-60L/R | X · Y · Z | 3 kg | 1.0 kg | |
| AAK4-60L/R | X · Y · Z · θz | 2.5 kg | 1.35 kg | |
| AAK5-60L/R | X · Y · Z · θz · θx | 2 kg | 1.7 kg | |
| AAK6-60L/R | X · Y · Z · θz · θx · θy | 1.5 kg | 2.1 kg |
X/Y travel ±6.5 mm (10 µm/scale) · Z travel ±6.5 mm · θz 360° coarse / 10° fine
Mounting & Accessories
Stage Accessories
Dedicated bases, right-angle brackets, and micrometers designed to complement all manual stage series.
BP Series Bases
- BP-A40 / BP-S40 — 40 mm aluminum or stainless
- BP-A60 / BP-S60 — 60 mm
- BP-A65 / BP-S65 — 65 mm
- BP-A80A/B/C/D — 80 mm (4 hole patterns)
- BP-A100 — 100 mm aluminum
- NFP-461-Base / NFP-462-Base — NFP-specific
PHOB Right-Angle Brackets
- PHOB-A40 / PHOB-S40 — 40 mm aluminum or SS
- PHOB-A60 / PHOB-S60 — 60 mm
- PHOB-A65 / PHOB-S65 — 65 mm
- PHOB-A80A/B/C/D — 80 mm (4 variants)
- PHOB-A100 — 100 mm
- PHOB-A120A/B/C/D — 120 mm · PHOB-A150A/B
NFP Z-Kit Brackets
- NFP-461-ZKit — for NFP-1461/2461/3461 vertical mount
- NFP-462-ZKit — for NFP-1462/2462/3462 vertical mount
- Aluminum alloy, Ø6 counterbore, 30–46 mm depth
- Enables Z-axis (vertical) NFP stage orientation
Micrometers
- J-MHF2-13 — 13 mm, coarse 0.01 / fine 0.0005 mm
- J-MHF2-13F — flat-tip variant, Ø9.5×5.5 mm install
- CF2-13F — coarse + fine, Ø9.5×5.5 mm
- ACSM25-1 — 25 mm, flat tip, Ø11 mm, 97 mm length
- ACSM25-2 — 25 mm, spherical tip, 99.6 mm length
- All: 0.5 mm pitch, 0.01 mm min. reading
He-Ne Laser Holders
PHLM cylinder laser tube holders for He-Ne lasers and other cylindrical sources.
PHLM-1
5-60 mm diameter; +/-5 degree adjustment
PHLM-2
25-45 mm diameter; compact support
PHLM-3
25-45 mm diameter; +/-3 degree adjustment
Free Expert Consultation
Not sure which stage fits your experiment?
Our scientists can help you select the right precision tier, material, and axis configuration — from a single linear stage to a fully custom multi-axis assembly.
