Zolix Instruments Distributor
Opto-Mechanics &Precision Motion
From sub-nanometer cryogenic piezo stages to complete optical cage assemblies and kinematic mirror mounts — the building blocks for any precision optical experiment.
10 mK–300 K
Thermal Operating Range
Cryogenic & ambient compatibility
Sub-nm to mm
Precision Motion
Piezo scanners to manual stages
8 Categories
Core Product Ranges
From mirror mounts to table systems
Modular
Integration Standards
Cage, post & rail systems
By submitting your request enquiry we will forward all relevant details regarding full specifications, step files, pricing, and any other necessary information you require.
Need a tailored setup? If you also need, we can organize a technical meeting to discuss and design the best solution that fits your specific application.
Product Catalog Directory
Opto-Mechanics Categories
Explore individual category catalogs or use the specs explorer below to compare details.

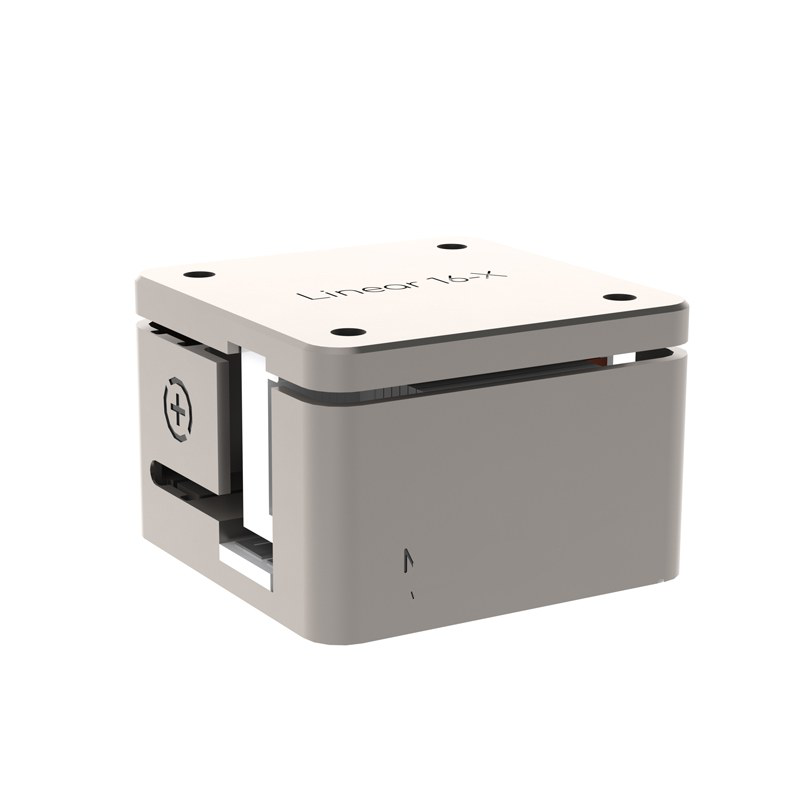

Cryogenic Piezo Stages
Precision down to 10 mK
Sub-nanometer precision stages engineered for operation down to 10 mK dilution cryostats. HV, UHV, and ULT compatible.
- Linear & Rotator Series
- Goniometers & Scanners
- MC-Newton / Archimedes Controllers

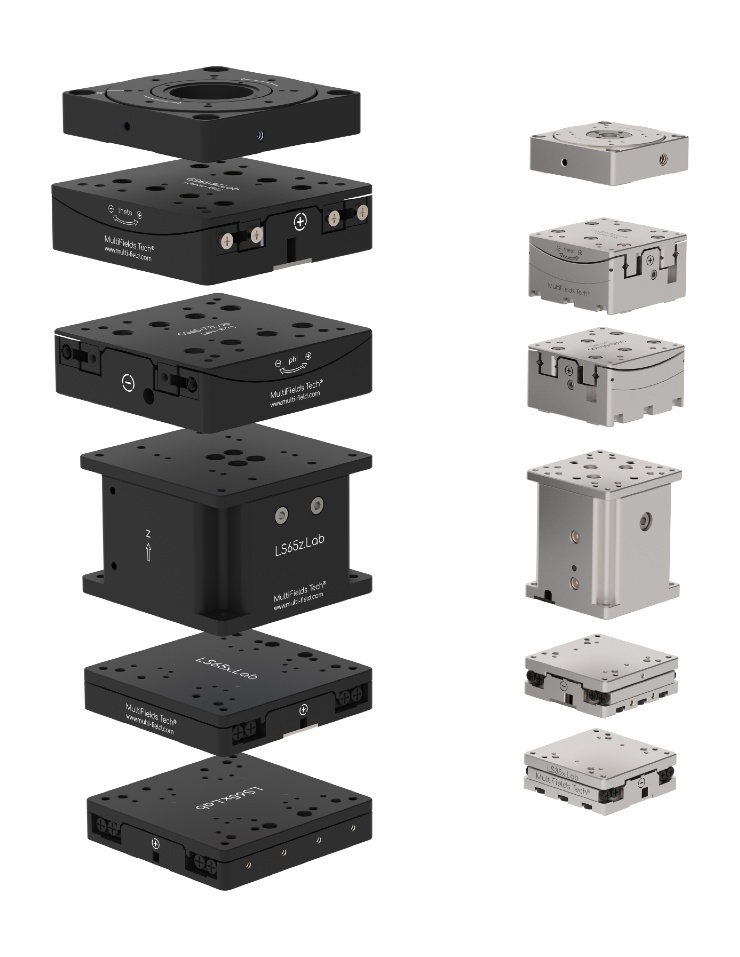

Ambient Piezo Stages
Precision @ 300K Room Temp
Piezo motor positioners, multi-axis stack platforms, and capacitive scanners for room temperature, vacuum, and UHV.
- Lab & Indus Stick-Slip Series
- Clear-Aperture Carrier Scanners
- AutoScrew Piezo Actuators
Optical Cage System
30 mm Standard Ecosystem
Modular cage plates, cubes, rods, and accessories for rapid, rigid assembly of complex beam paths.
- Standard 30 mm Spacing
- CSP1 Cage Plates & Cubes
- Black Anodized 6061 Aluminum
Kinematic Mirror Mounts
High Rigidity & Vacuum Ready
Premium SUS stainless steel and AUS aluminum kinematic mirror mounts, lens mounts, and post systems.
- SUS Stainless Steel series
- AUS Aluminum series
- 120+ Models & Adaptors

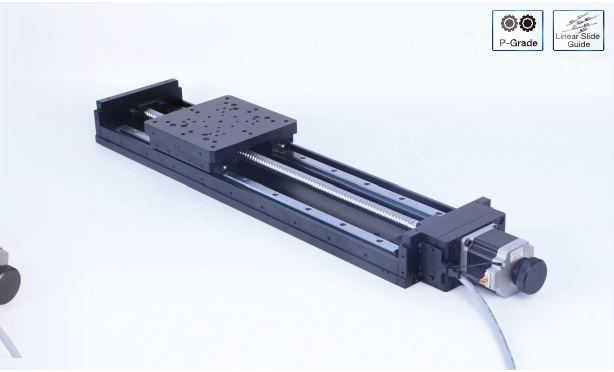

Motorized Motion Control
Stepper & Closed-Loop Stages
High precision motorized linear (KSA/KSP), vertical (TSA), and rotation stages (RAK/RAP) with controllers.
- KSA/KSP Motorized Linear
- TSA Lab Jacks & Wedge Lifts
- SC300/MC600 Controllers

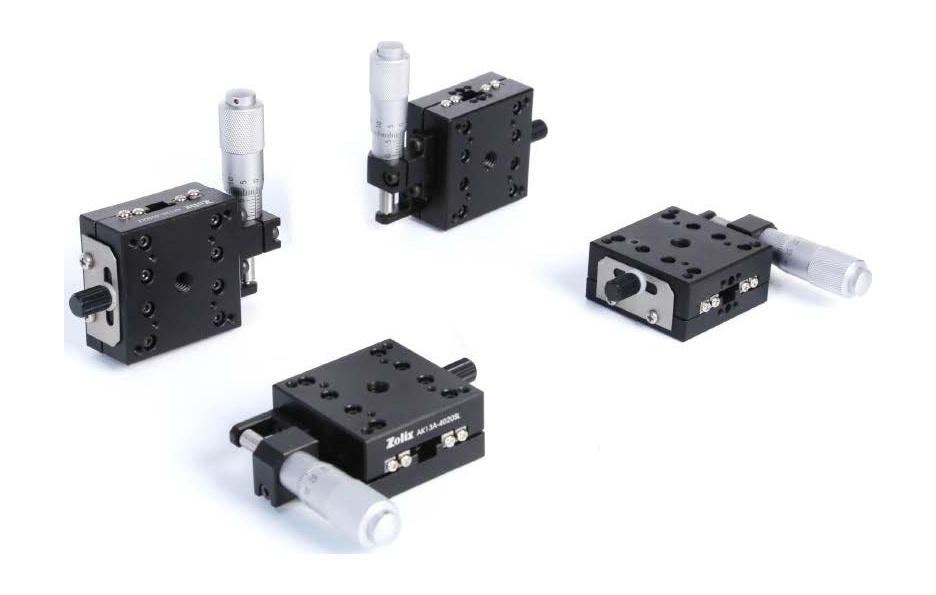

Manual Stages & Jacks
Crossed-Roller Precision
NFP crossed-roller linear stages (≤1 µm sensitivity), rotation stages, goniometers, and multi-axis stacks.
- NFP Crossed-Roller (≤1 µm)
- SK/AK Stages (≤2 µm)
- Combined stacks up to 6-DOF
Optical Tables & Boards
Passive & Active Isolation
Honeycomb stainless steel breadboards, passive damping tables, and active pneumatic isolation systems.
- Passive & Active Damping
- Pneumatic Isolation (<1.5 Hz)
- Custom Splicing & Sizes

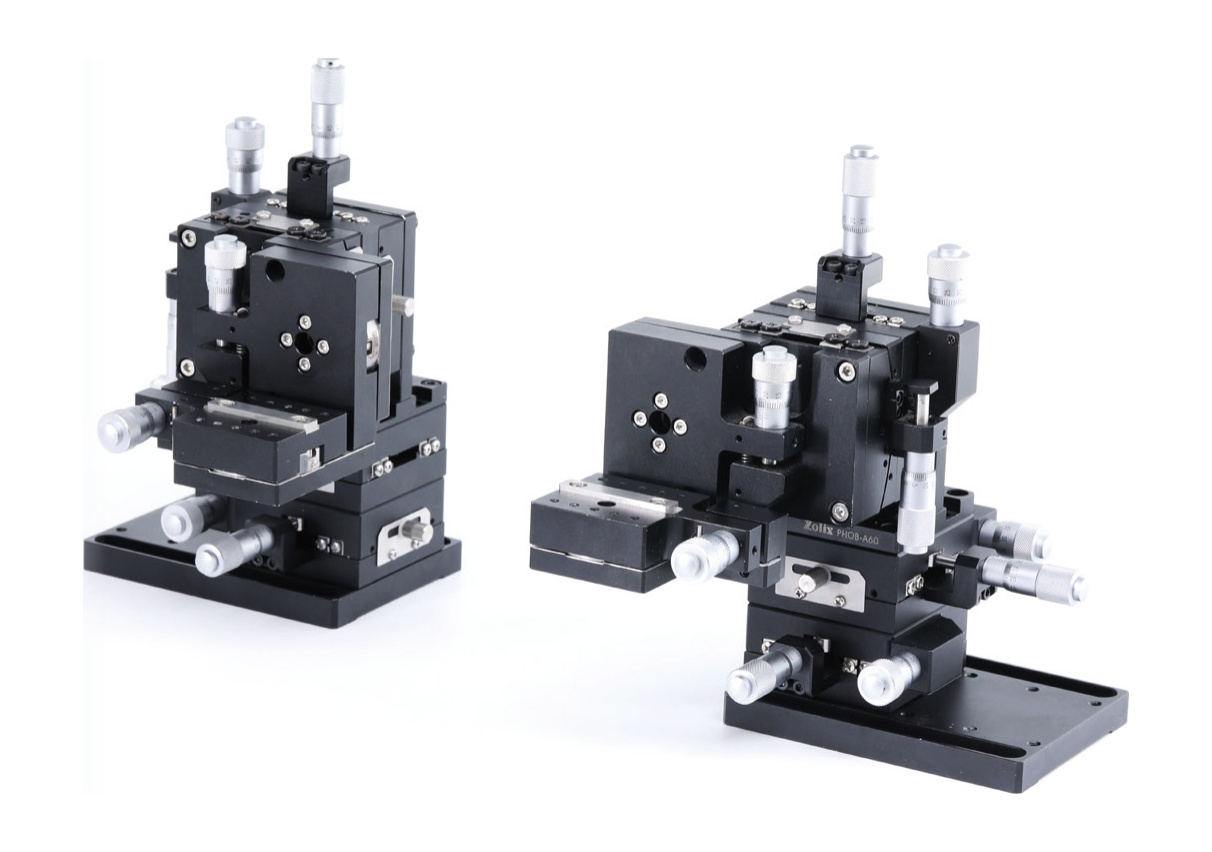

Fiber Alignment Stages
High Sensitivity Coupling
UFP manual coupling stages (≤0.5 µm) and NXP parallel flexure platforms (1 nm piezo resolution).
- UFP Coupling (≤0.5 µm)
- NXP Flexure Platform (1 nm)
- APFP Accessories & Adapters
Custom Optical Setups
Integrated Systems & Engineering
From cryogenic microscopy to multi-wavelength laser delivery—our engineers build and align complete setups.
- Cryo Microscopy Stations
- Laser Beam Delivery
- Custom Raman / PL Setups
Zolix Instruments
Cryogenic Piezo Stages
Piezoelectric motion units engineered for operation down to 10 mK dilution cryostats. Compatible with HV, UHV, and ultra-low-temperature environments.
"Linear" Series
Linear16 · Linear25 · Linear35
X & Z direction linear motion units. Compact, robust, stack-compatible for multi-axis configurations in cryostats.

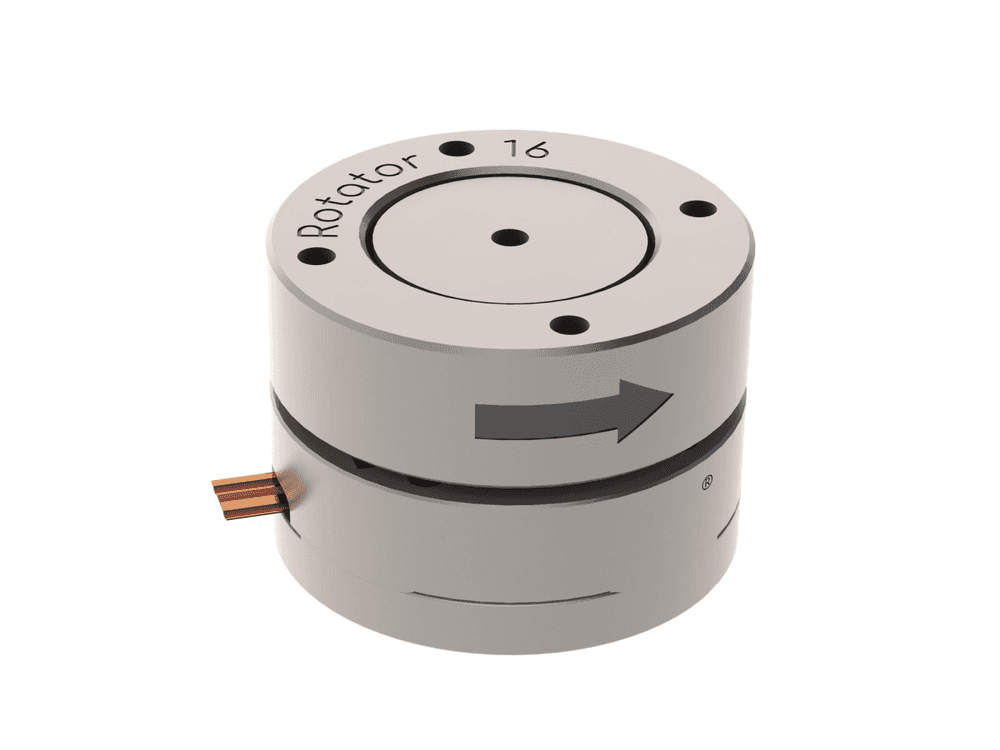

"Rotator" Series
Rotator16 · Rotator25 · Rotator35
360° rotary motion units. Ideal for sample rotation and polarization-dependent measurements at cryogenic temperatures.

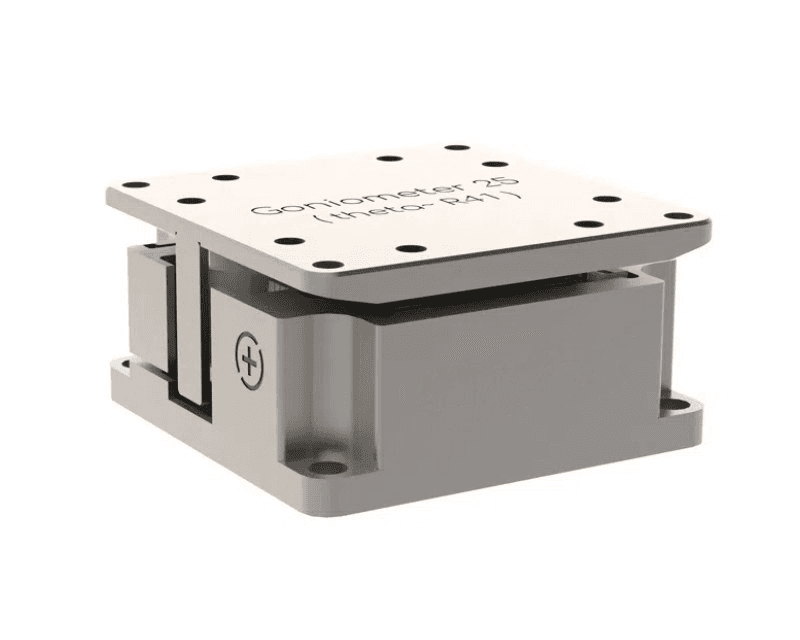

"Goniometer" Series
Goniometer25/35 theta & phi
Tilt motion units for precise angular positioning. Available in theta and phi configurations for full spherical access.
"LS-Linear" Series
LS-Linear 30 · 50 · 75 · 100 · 200
Long-stroke linear motion from 30 mm to 200 mm travel. Perfect for sample scanning or large displacement tasks inside cryostats.

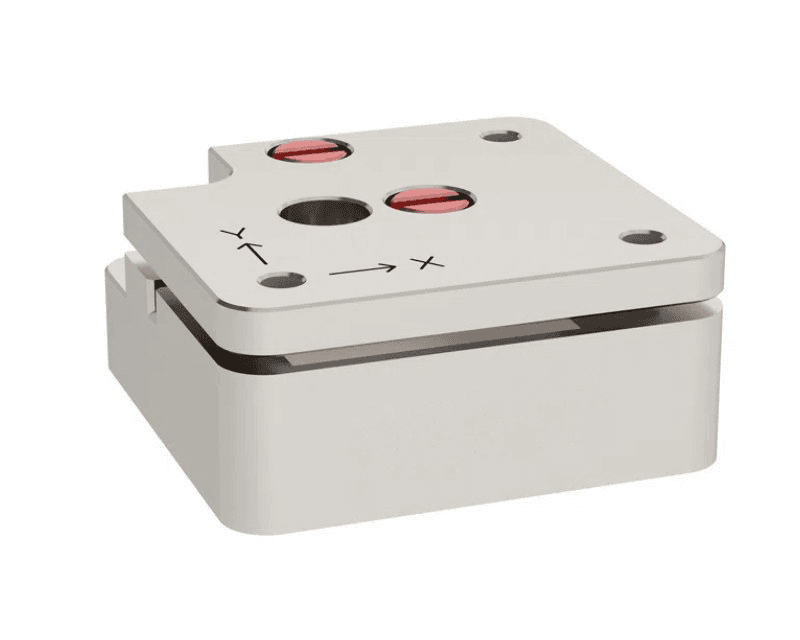

"Scanner" Series
Scanner16/25/35 xy & z
Piezo stack driven, friction-free scanners for precise nanometer-scale scanning in STM, AFM, and near-field microscopy applications.
"Closed-Loop Scanners" — Ultra
Scanner25/35 Ultra HV · UHV · ULT
Closed-loop scanners with sub-nm capacitive displacement sensors. Actively compensates thermal drift and piezoelectric creep.
Motion Controllers
MC-Newton & MC-Archimedes Series
Dedicated controllers for cryogenic positioners and closed-loop scanners. Full LabVIEW support with USB and RS232 communication. The new MC-ArchimedesLT.03.Ultra adds EtherCAT/EtherNET connectivity and 50 kS/s multi-channel sampling for synchronous closed-loop control.
- MC-NewtonLT.01 & .06 — Positioner controller for linear/rotary/goniometer stages
- MC-ArchimedesLT.03 — Scanner controller, SPI communication
- MC-ArchimedesLT.03.Ultra (2025) — Sub-nm closed-loop, EtherCAT/USB 3.0, 50 kS/s
50 kS/s
Sampling Rate
MC-ArchimedesLT.03.Ultra
USB · RS232 · EtherCAT
Interfaces
Controller dependent
Multi-ch
Channels
Synchronous control
Sub-nm
Resolution
Closed-loop Ultra series
Zolix Instruments
Ambient Piezo Stages & Nanopositioners
Piezoelectric motion units engineered for room-temperature operation. Compatible with standard laboratory air, high vacuum (HV), ultra-high vacuum (UHV), and non-magnetic environments.

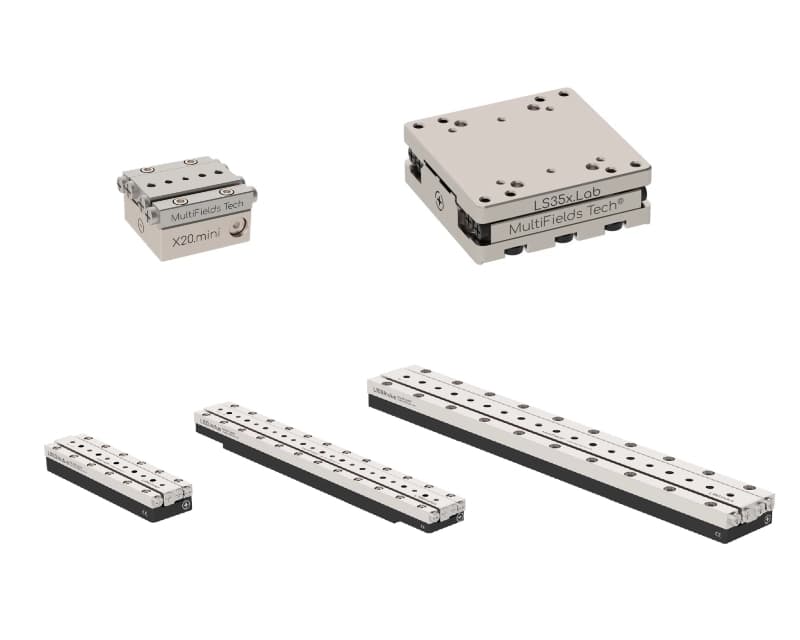

Lab & Indus Motor Stages
LS35 · LS65 · LS105 · RS35/65
Stick-slip piezo motor linear, rotary, and goniometer stages. Closed-loop optical encoder feedback offers standard (2 nm) and advanced (0.5 nm) options.

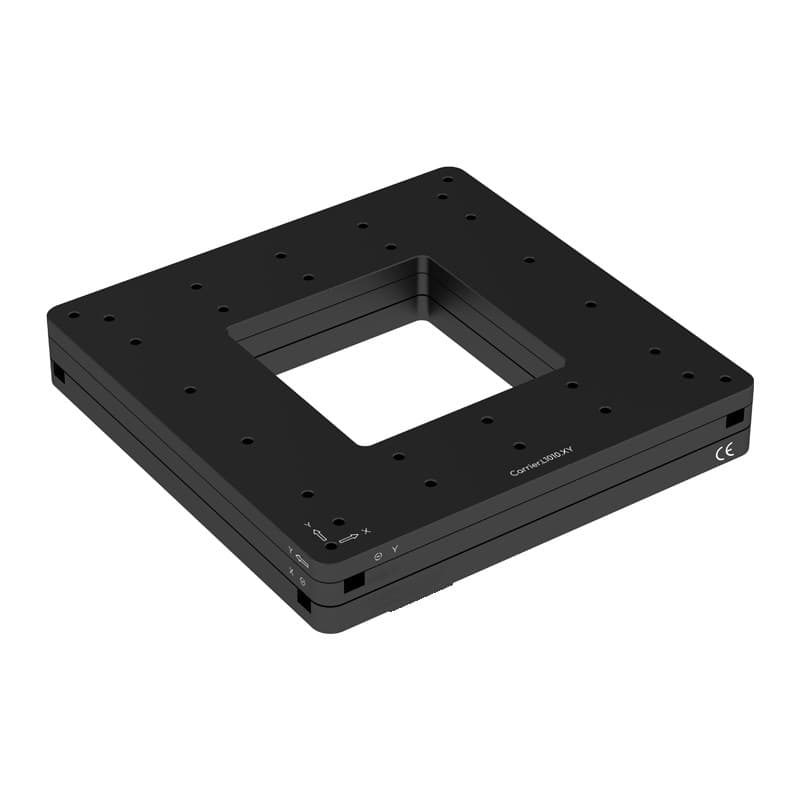

Carrier Scanners & FreeXD
Carrier.OB · Carrier.S · Carrier.SL
Sub-nanometer closed-loop scanners with capacitive displacement sensors. Designed for high-speed laser scanning, AFM, and optical microscope sample stages.
AutoScrew Piezo Actuators
AutoScrew12 · Fast Tip/Tilt Deflectors
Piezo motor driven adjustment screws and mirror deflection mounts. Automatically automates manual kinematic mirror mounts for active drift compensation.
Automated Accuracy
Advanced Grade Nano-Precision
The Zolix room-temperature positioning system operates across standard environments to ultra-high vacuum (2 × 10⁻¹¹ mbar) and is completely non-magnetic. Capable of supporting heavy sample loads with sub-nanometer stability.
0.5 nm adv.
Sensor resolution
Standard 2 nm accuracy
2e-11 mbar
UHV compatibility
Non-magnetic options
Up to 200 mm
Travel range
Long-stroke Indus series
1 to 6-DOF
Multifields®
Stackable positioning
Zolix — 30 mm Standard
Optical Cage System
A complete modular 30 mm cage ecosystem — cage plates, cubes, rods, and accessories — enabling rapid assembly of beam delivery and imaging configurations on any optical table.
Modular 30mm Standard
High rigidity & mechanical alignment stability
Cage Plates
- CSP1-25.4 — 9 mm, for Ø25.4 mm optics (SM1 thread)
- CSP1-SM1 — 9 mm, SM1 lens tube mounting
- CSP1-RMS — 9 mm, RMS internal thread
- CSP1R-SM1 — Rotating plate, 360° / 2° resolution
Cage Cubes
- CSC1-M3-A — M4/M4 top/bottom, SM1 sides
- CSC1-M3-B — SM1 on all six faces
- CSC1-M3-C — Through-hole top, SM1 sides
- CSC1-M3 — No top/bottom cover, SM1 sides
Rods & Accessories
- Ø6 mm cage rods — various lengths
- Compatible with all 30 mm cage components
- 6061 aluminum alloy, black anodized
- M4 post mounting on all plates
Build Any Optical Assembly
The Zolix 30 mm cage system is fully cross-compatible — mix cage plates, cubes, and rods to build confocal relay paths, beam expanders, filter assemblies, and fiber coupling stages. All components are 6061 aluminum with black anodic-oxide finish for low reflectance and long-term stability.
120+ Models Available
Mirror Mounts & Opto-Mechanics
The full Zolix opto-mechanics range — from stainless steel kinematic mirror mounts to spatial filters, filter wheels, posts, and rail systems. Everything needed for a complete optical bench.
Kinematic Mirror Mounts (SUS & AUS Series)
Machined with precision tolerances, the stainless steel **SUS Series** and anodized aluminum **AUS Series** offer exceptional mechanical rigidity. Designed to hold optical mirrors up to 2 inches in diameter with high resolution adjustability.
SUS Series
Stainless steel, high thermal stability & vacuum/high-power laser compatible
AUS Series
Lightweight aluminum kinematic mounts, anodized for reflectivity control
Kinematic Mirror Mounts
- SUS Series — stainless steel, vacuum & high-power laser compatible
- AUS Series — aluminum kinematic mounts
- NMHS, NMM, NMC, NMV, NMVG Series — general purpose
- NRAM right-angle mounts
- OMMB coplanar mounts, NMUM 5-axis mounts
- NBS & BS Series periscopes
Lens & Laser Mounts
- NL Series — kinematic lens mounts
- NLB Series lens mount
- OMLS self-centering lens mount
- OMLH lens mount & OMLH-Z for cylindrical lenses
- LM Series — laser mounts
- MM Series — small industrial kinematic mounts
Spatial Filters & Beamline
- NASF Series — spatial filters
- NASF-GD — pinhole diaphragm mount
- APAS — one-way micrometer adjustable slits
- APID — adjustable iris diaphragms
- NOS Series optics pack switches
- ABC Series beam dumps
Posts, Rails & Accessories
- PHK, Ø6/12/20/25 mm post systems
- NPHR mounting columns
- PHCP crossing post clamps
- RAOB-M miniature optical rail system
- FHT fixed height tables
- PHOB right-angle brackets, NAT/NAD alignment discs
Filter Wheels & Mounts
- NF Series — filter mounts
- NFH Series — filter mounts with handle
- OMMB-NDFC50 — gradient ND filter wheel
- MFW Series — motorized filter wheel
- NMPO — polarization component kinematic mount
Prism & Cylinder Mounts
- NPMV Series — prism kinematic mounts
- OMHS-PM — prism kinematic mount
- NPM Series — prism kinematic mount
- NCM & NCC — V clamp kinematic mounts
- PHLM — cylinder laser tube kinematic mount
Special & Multi-Axis Mounts
- NMHS Special kinematic mount
- OMHS Special kinematic mount
- OMxA Multi-Axis kinematic mount
- MAD-M22 adaptors for OMxA mounts
- NMDM Series — large kinematic mounts
Table & Base Accessories
- BP Series base plates
- ACCA/ACCF table clamps
- ACOA adapter rings, ACS adapter screws
- SK Series screw kits & tools
- DMH06, NAFS, ACFS adjustment screws
- RACA sliding carriers & RAOB guideway
Don't see the exact model? The complete price-list catalog is searchable in the site.
Browse Complete CatalogMotorized Solutions
Motorized Stages & Motion Control
Precision automated positioning solutions. Explore our comprehensive catalog of motorized linear, vertical, and rotation stages alongside advanced multi-axis controllers.

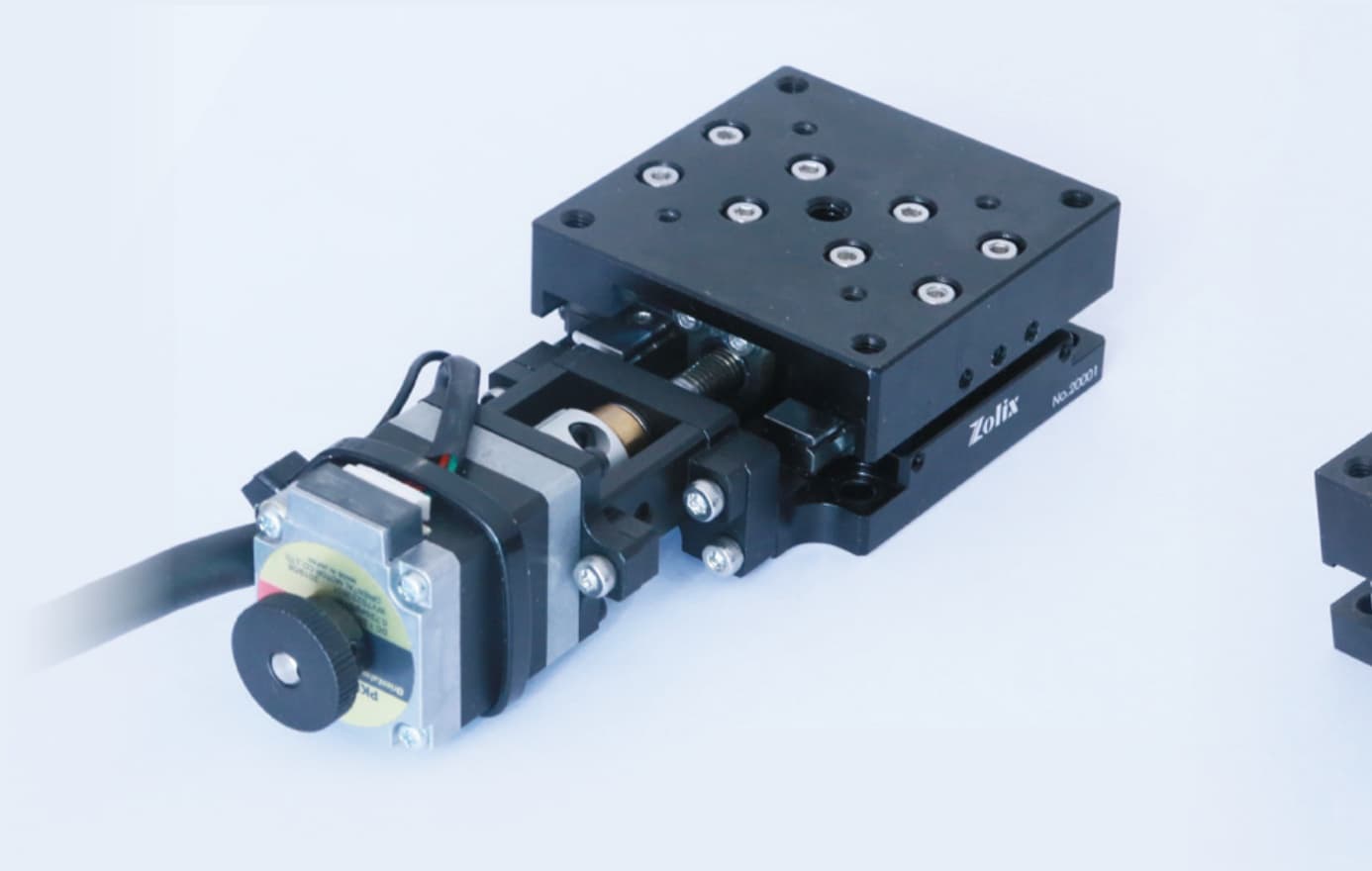

Motorized Linear Stages (KSA & KSP)
Engineered with high-precision ball screw drives and microstepping motors to achieve sub-micron repeatability. Adaptable for multi-axis configurations (XY, XZ, XYZ) using standardized modular mounts.
KSA Series
High precision linear translation, up to 35 kg load, custom travel options
TSA Series
Scissor-drive motorized lab jacks for vertical lifts up to 100mm
Linear Motorized Stages
- KSA Series — high precision ball screw linear stages
- KSP Series — slim profile, space-critical applications
- Modular XY and XYZ stack adapters
- Micro-stepping and optical encoder options
- Travel ranges from 50 mm up to 400 mm
Vertical Elevation Stages
- TSA Series — wedge and scissor lab jacks
- High vertical load capacity up to 25 kg
- Extremely stable vertical cross-roller guiding
- Integrated upper and lower limit switches
- Wobble-free vertical lift up to 100 mm
Motorized Rotation Stages
- RAK Series — continuous 360° rotation stages
- RAP Series — high-aperture motorized rotators
- Worm gear drive mechanism for zero backlash
- Clear degree scale markings on the dial
- Center apertures up to Ø80 mm
Multi-Axis Controllers
- SC300 Series — 2-axis & 4-axis stepper controllers
- MC600 Series — up to 6-axis closed-loop control
- Python, C/C++ SDK libraries included
- LabVIEW virtual instruments (VIs) support
- Ethernet/USB plug-and-play interfaces
Manual Stages & Positioners
The complete Zolix manual stage catalog — NFP ultra-high precision crossed-roller linear stages (≤1 µm sensitivity), SK/AK stainless & aluminum series, long-travel AD rack-and-pinion rails, vertical positioners, rotation stages, goniometers, and pre-assembled multi-axis stacks up to 6-DOF.
≤ 1 µm
NFP Sensitivity
360°
Rotation Range
6-Axis
AAK Combined
240 mm
MJ Jack Stroke
Optical Tables & Breadboards
The complete Zolix optical table range — from solid aluminum and honeycomb stainless steel breadboards (OTSB, NTBK, NTBP) to passive damping tables (DRP, 6–15 Hz) and active pneumatic vibration isolation systems (ZTP, NAP, TPR, ZSR-P, <1.5 Hz). Sizes from 300×300 mm up to 4.5×1.5 m, custom spliced configurations available.
0.02 mm
Surface Flatness
< 1.5 Hz
Pneumatic Resonance
3000 kg
Max Load Capacity
4.5 × 1.5 m
Max Table Size
Fiber Alignment & Coupling Stages
The complete Zolix fiber optic positioning range — UFP high-sensitivity manual stages (≤0.5 µm, 1–6 axis), NXP parallel flexure platforms (no bearings, 1 nm piezo option, >130 Hz resonance), NFP ultra-high precision stainless stages (SUS304, ≤1 µm, 3–6 axis), and the full APFP dovetail accessory ecosystem.
≤ 0.5 µm
Linear Sensitivity
1 nm
Piezo Resolution
6-Axis
Max DOF
> 130 Hz
Flexure Resonance
Complete Solutions
We Configure Complete Optical Setups
Beyond individual components — we help design and source entire optical systems. Tell us your experiment and our scientists will suggest the right configuration.
Cryogenic Microscopy Station
XYZ piezo scanner + cryostat-compatible objective mount + fiber coupling cage assembly. Designed for STM, AFM, or confocal experiments at millikelvin temperatures.
Laser Beam Delivery System
Mirror mount chain + spatial filter + beam expander + fiber launch — all aligned on a single optical rail or breadboard. We select mounts for your laser wavelength and power level.
Photoluminescence / Raman Setup
Excitation + collection cage path feeding a Zolix Omni-λ spectrograph, with filter wheel for laser rejection and cooled camera. Full system sourced from a single contact.
Fiber Alignment Stage
Six-axis kinematic platform using OMxA multi-axis mounts and NL lens mounts for single-mode fiber coupling. Sub-micron alignment routinely achieved.
Polarimetry Configuration
NMPO polarization component mounts in a cage system for Stokes parameter or Mueller matrix measurements. Compatible with rotating wave-plate motors.
Your Custom Application
Don't see your experiment listed? We work with research groups across photonics, quantum technology, material science, and life sciences. Describe your setup and we'll find a solution.
Free Expert Consultation
We Have a Solution forMany Experiments
Contact our scientists. Whether you know exactly what you need or are starting from scratch — we help you find the right configuration, no obligation. In-person visits available across the Netherlands.
Talk to a Scientist
Our team has hands-on experience with optical experiments. We speak your language — not just sales brochures.
No Obligation
Every conversation is free. We help you scope what you need before any commitment is made.
In-Person Help
We come to you. On-site visits to your lab or institute — anywhere in the Netherlands.
Prefer email? Send us a message and we'll respond within one business day.
