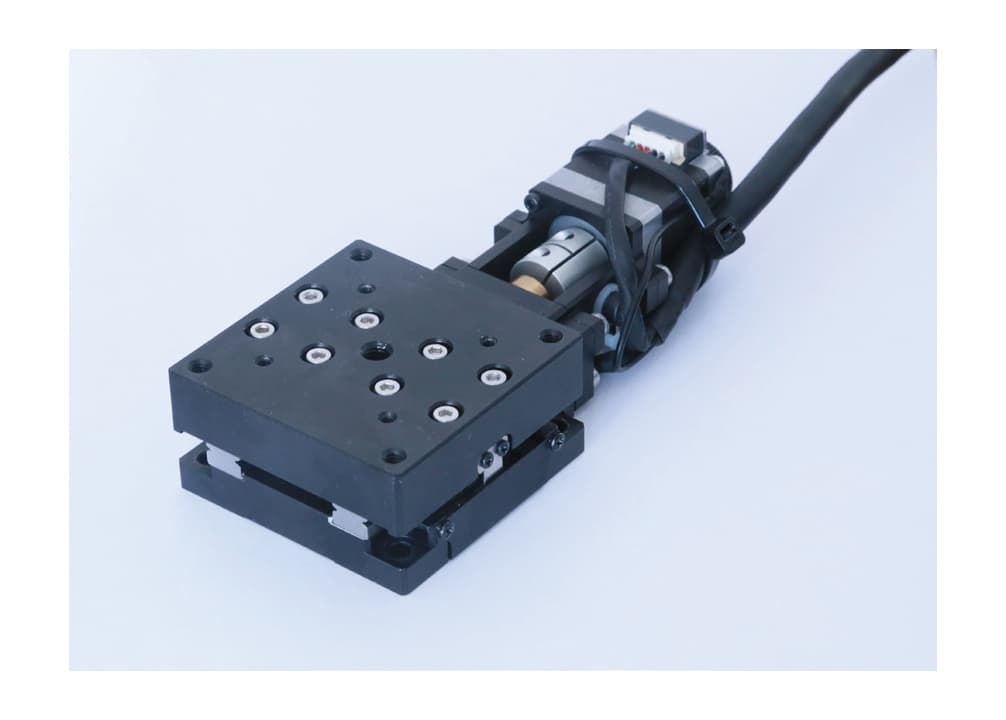

LAK20-60 Motorized Linear Stage
Identified Model Reference
LAK20-60
Specifications
- High-precision compact aluminum alloy body
- Travel: 20 mm
- Table size: 60 × 60 mm
- Guide: Linear slider guides
- Screw Pitch: 1.0 mm (Φ6×1 ball screw)
- Max Load: 8 kg (Horizontal) / 3 kg (Vertical)
- Repeatability: ±1 µm
- Resolution: 2 µm (step) / 1 µm (half-step)
- Motor: Standard 5-phase stepper
We will match this configuration with Zolix Instruments motorized products and provide relevant pricing, STEP files, and technical solution.
Datasheet View
Zolix LAK20-60 Motorized Linear Stage Specs
Reference Model: LAK20-60
Physical Specifications
| Travel Range | 20 mm |
| Platform Size | 60 × 60 mm |
| Guideway Type | Linear slider guides |
| Transmission mechanism | C3 Ball screw, Φ6×1 (1 mm pitch) |
| Main Material | Black Anodized Aluminum Alloy |
| Weight | 0.58 kg |
Performance & Accuracy
| Repeatability | ≤ ±1 µm |
| Backlash | ≤ 1 µm |
| Resolution (Half-step) | 1 µm |
| Min. Incremental Motion | ≤ 1 µm |
| Highest Speed | 20 mm/s |
| Pitch / Yaw | ≤ 30" / ≤ 25" |
Drive & Sensors
| Motor Model | Oriental Motor PKP523N12B-L |
| Working Current | 1.2 A |
| Holding Torque | 52.5 N.m |
| Sensors | 2× Limit, 1× Origin (NPN open collector) |
| Sensor Model | OMRON EE-SX4320 |
| Load Capacity (Horiz/Vert) | 8 kg / 3 kg |
💡 High-rigidity design conforming to ISO precision standards. Contact Precisometer for 2D/3D CAD models.
