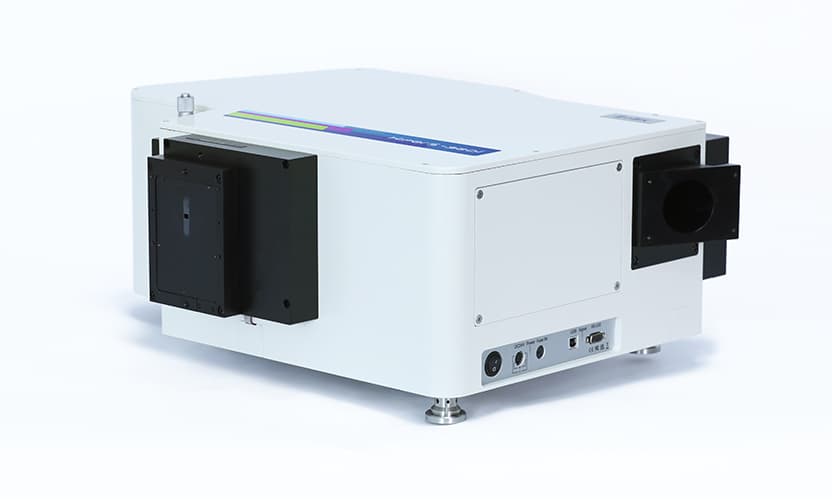

HiperS-320iAberration-Free Imaging Spectrometer
By implementing a full focal plane aberration correction optical design, the HiperS-320i eliminates off-axis astigmatism across the entire sensor surface. This delivers superior multi-channel measurement capabilities, increased spectral resolution, and reliable, peak-accurate intensity measurements across large-format CCD and sCMOS detectors.
Key Technologies
Advanced Optomechanical Design
Engineered for high-end research applications including LIBS, Confocal Raman, Multi-track Fluorescence, and Transient Absorption Spectroscopy.
Multi-Port Configuration
Supports up to two automated entrance ports and two exit ports. Fully motorized optical path switching provides maximum experimental flexibility.
On-Axis Grating Turret
Grating rotation on the optical axis increases the active area of the diffraction gratings. Optimizes illumination efficiency and provides a 15% increase in grating utility.
Resolution Intensifier
A built-in optical intensifier module increases standard spectrometer resolution by up to 20%, concentrating photons into narrower, sharper peaks.
Intelligent Auto-Focus
Automatic focusing mirror adjusts positioning dynamically during grating rotation to maintain perfect focus and high spectral/spatial resolution.
Interactive Laboratory Demo
Performance Verification Plots
Explore the optical behavior of the HiperS-320i compared to standard Czerny-Turner layouts. Toggle the controls to visualize real performance characteristics.
Spectral Resolution Enhancement Module
Standard spectrographs encounter aberrations away from the center of the detector plane. The HiperS-320i incorporates a built-in Resolution Intensifier Module.
When engaged, this optical array optimizes the wave curvature. This reduces the spectral line Full Width at Half Maximum (FWHM) by approximately 20%.
Example: At 435.83 nm, the FWHM narrows from 0.120 nm down to 0.096 nm. This allows you to resolve closely spaced emission bands that would otherwise merge.
ðĄ Scientific Impact
By eliminating astigmatism, photons are not spread vertically across multiple pixel rows but are instead concentrated onto a minimal pixel footprint. This dramatically improves the Signal-to-Noise Ratio (SNR) and absolute limit of detection for weak fluorescence or Raman signals.
Specifications
Instrument Parameters
HiperS-320i Core Specs
| Focal Length | 320 mm |
| Aperture Ratio | f/4.4 |
| Scan Range (with 1200 g/mm) | 0 â 1430 nm |
| Resolution (PMT) | 0.06 nm |
| Resolution (CCD, 15 Ξm pixels) | 0.12 nm |
| Dispersion | 2.29 nm/mm |
| Wavelength Accuracy | Âą0.2 nm |
| Wavelength Repeatability | Âą0.025 nm |
| Step Size | 0.005 nm |
| Stray Light Rejection | 5 Ã 10âŧâĩ |
| Focal Plane Size | 29 mm (w) Ã 14 mm (h) |
| Optical Axis Height | 156.3 â 171.3 mm (adjustable) |
| Grating Dimensions | 68 mm à 68 mm |
| Grating Mount | On-Axis Triple Turret |
| Slit Configuration | 0.01 â 3.00 mm continuous manual slit (motorized optional). Height options: 2, 4, 14 mm. |
| Physical Dimensions | 591 Ã 460 Ã 260 mm (L Ã W Ã H) |
| Weight | 30 kg (excluding options) |
| Communication Interface | USB 2.0 / RS-232 |
Performance by Grating Selection
System performance (resolution, dispersion, spectral coverage) shifts depending on the groove density of the installed diffraction grating. The HiperS-320i turret fits up to 3 gratings.
| Grating | Disp. (nm/mm) | Scan (nm) | Res (PMT) | Res (CCD) | One-Shot (nm) |
|---|---|---|---|---|---|
| 2400 g/mm | 0.91 | 0 â 715 | 0.03 nm | 0.048 nm | 26.4 @30mm |
| 1800 g/mm | 1.39 | 0 â 953 | 0.04 nm | 0.073 nm | 40.3 @30mm |
| 1200 g/mm | 2.29 | 0 â 1430 | 0.06 nm | 0.12 nm | 66.4 @30mm |
| 600 g/mm | 4.87 | 0 â 2860 | 0.12 nm | 0.256 nm | 141.2 @30mm |
| 300 g/mm | 9.97 | 0 â 4290 | 0.24 nm | 0.523 nm | 289.1 @30mm |
| 150 g/mm | 20.13 | 0 â 11440 | 0.48 nm | 1.06 nm | 583.8 @30mm |
Note 1: Slit resolution measured at central wavelength of 435.83 nm, with a 10 Ξm slit width.
Note 2: CCD one-shot spectral range is computed for a typical 30 mm width CCD detector.
Note 3: Dispersion varies inversely with central wavelength settings.
Configurations
Typical Selection & Port Codes
Configure your HiperS-320i layout matching your detector and light source geometry.
| Model | Optomechanical Port Configuration |
|---|---|
| HiperS-3204i | Side entrance slit, double CCD exit ports |
| HiperS-3205i | Side entrance slit, front exit slit |
| HiperS-3206i | Side entrance slit, front CCD exit port |
| HiperS-3207i | Side entrance slit, double exit slits |
| HiperS-3208i | Side entrance slit, front CCD exit port and side exit slit |
| HiperS-3224i | Double entrance slits, double CCD exit ports |
| HiperS-3227i | Double entrance slits, double exit slits |
| HiperS-3228i | Double entrance slits, front CCD exit port and side exit slit |
| HiperS-3247i | Side entrance slit, double exit slits with UV coating |
| HiperS-3248i | Side entrance slit, front CCD exit port and side exit slit with UV coating |
