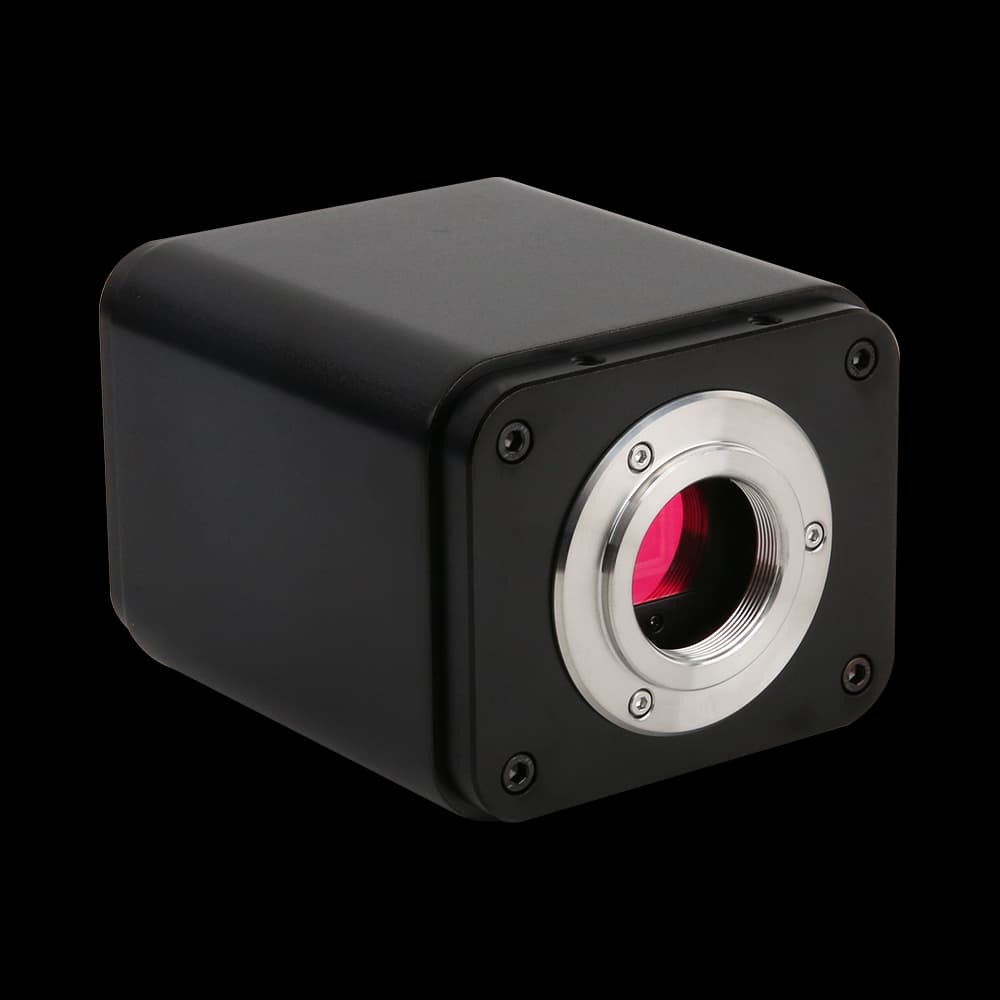

Intelligent Imaging
Smart Cameras for Industrial Vision
Multi-interface machine vision cameras, hardware-autofocus heads, touchscreen all-in-one microscope cameras, and standalone HDMI digital microscopes. No PC required for many configurations.

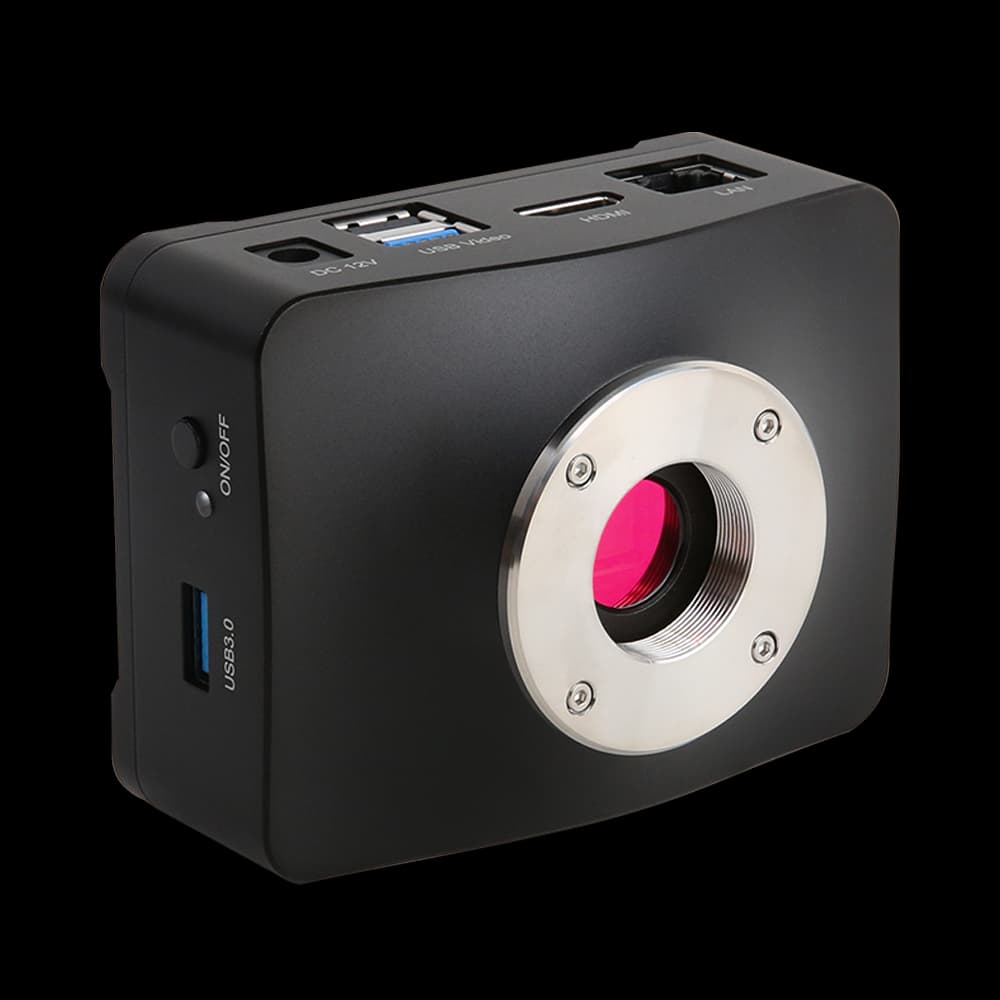

X8CAM4K / X7CAM4K Series โ 4K Multi-Output Cameras
Cameras with simultaneous HDMI 2.0 (4K/1080P), USB 3.0, and Ethernet network output. Sony BSI CMOS sensors up to 22 MP. SD card slot for local video/image storage. Optional WiFi adapter for wireless streaming. Built-in imaging controls operated by USB mouse without any host PC. Depth-of-field synthesis and real-time image stitching on-device.
X8CAM4K22MPA
X8CAM4K16MPA
X7CAM4K8MPA
| Parameter | X8CAM4K22MPA | X8CAM4K16MPA | X7CAM4K8MPA |
|---|---|---|---|
| Sensor | Sony IMX571 BSI (Color) | Sony IMX383 (Color) | Sony IMX678 (Color) |
| Sensor Format | 1.7" (23.46 ร 13.21) | 1/1.1" (13.06 ร 7.34) | 1/1.8" (7.68 ร 4.32) |
| Resolution (pixels) | 22 MP (6240 ร 3512) | 16 MP (5440 ร 3060) | 8 MP (3840 ร 2160) |
| Pixel Size (ฮผm) | 3.76 ร 3.76 | 2.4 ร 2.4 | 2.0 ร 2.0 |
| Max FPS (HDMI 4K) | 37 fps | 60 fps | 72 fps |
| HDMI Output | HDMI 2.0, 4K/1080P | HDMI 2.0, 4K/1080P | HDMI 2.0, 4K/1080P |
| USB 3.0 Output | 30 fps @ 3840ร2160 | 30 fps @ 3840ร2160 | 72 fps @ 3840ร2160 |
| Network Output | 30 fps @ 3840ร2160 | 60 fps @ 1920ร1080 | โ |
| SD Card Storage | SDIO 3.0 | SDIO 3.0 | SDIO 3.0 |
| Built-in ISP | โ sharpening, 3D NR, ROI WB | โ sharpening, 3D NR, ROI WB | โ ISP |
| WiFi (optional) | 5G / 2.4G (adapter) | 5G / 2.4G (adapter) | 5G / 2.4G (adapter) |
| USB Mouse Control | โ (on-device) | โ (on-device) | โ |
| Controls (built-in) | Embedded controls | Embedded controls | Embedded controls |
| Lens Mount | M42 ร 0.75 | C-mount | C-mount |
| Power | DC 12 V / 1 A | DC 12 V / 1 A | DC 12 V / 1 A |
| SDK / Platforms | Win / Linux / macOS / Android | Win / Linux / macOS / Android | Win / Linux / macOS / Android |
5 Ways to Connect & Use the X8CAM4K
XCAM / SCAM / WEUCAM Series โ Industrial Machine Vision
Industrial-grade cameras with multiple interface options for factory automation, inline AOI, robot vision, and OEM integration. Global shutter options for freeze-frame accuracy on moving assemblies.

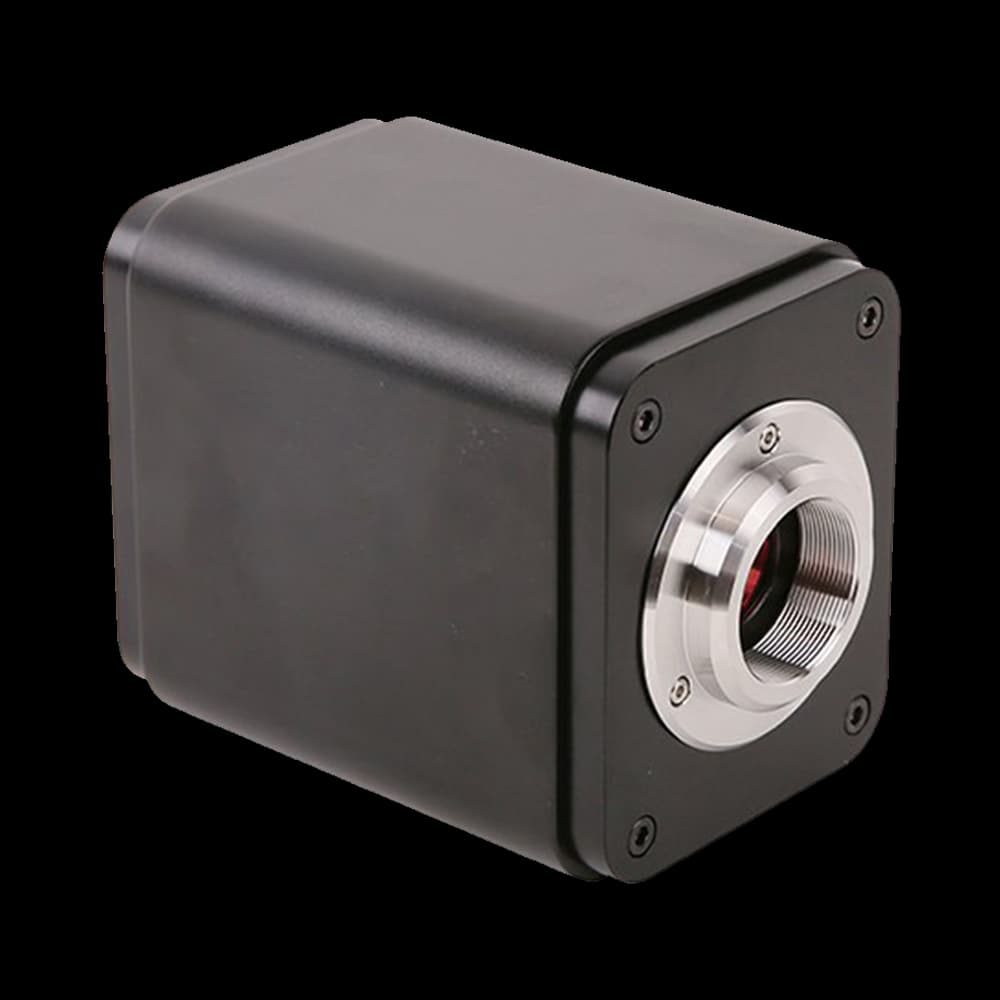

XCAM Series
Multi-interface industrial machine vision cameras with USB 3.0, GigE, 10GigE, CameraLink, and CXP output options. Sony, Gpixel and IMX CMOS sensors, 1โ25 MP. Global shutter and rolling shutter variants. C-mount. Industrial trigger I/O.

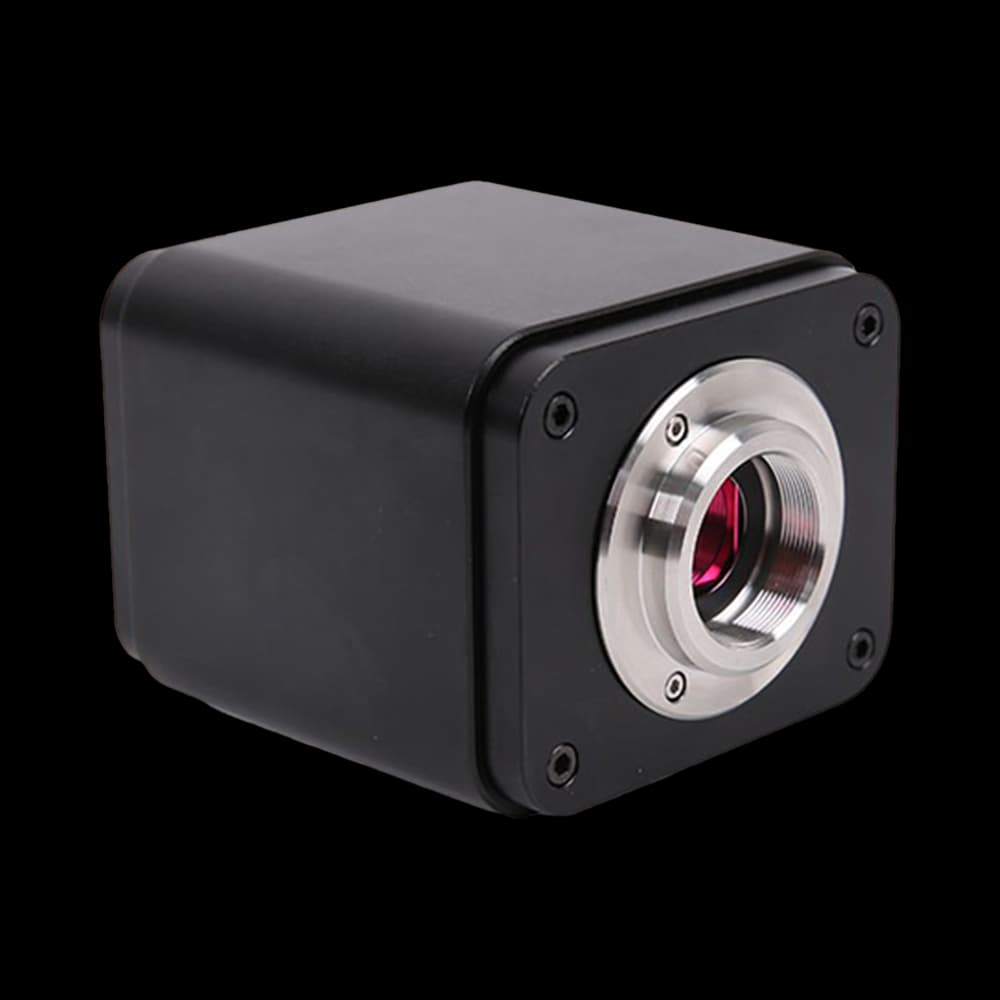

SCAM Series
Compact machine vision cameras for embedded and space-constrained deployments. USB 3.0 interface, Sony CMOS, 1โ12 MP, small form-factor body. Suitable for inline AOI, robot vision, and micro-inspection heads.

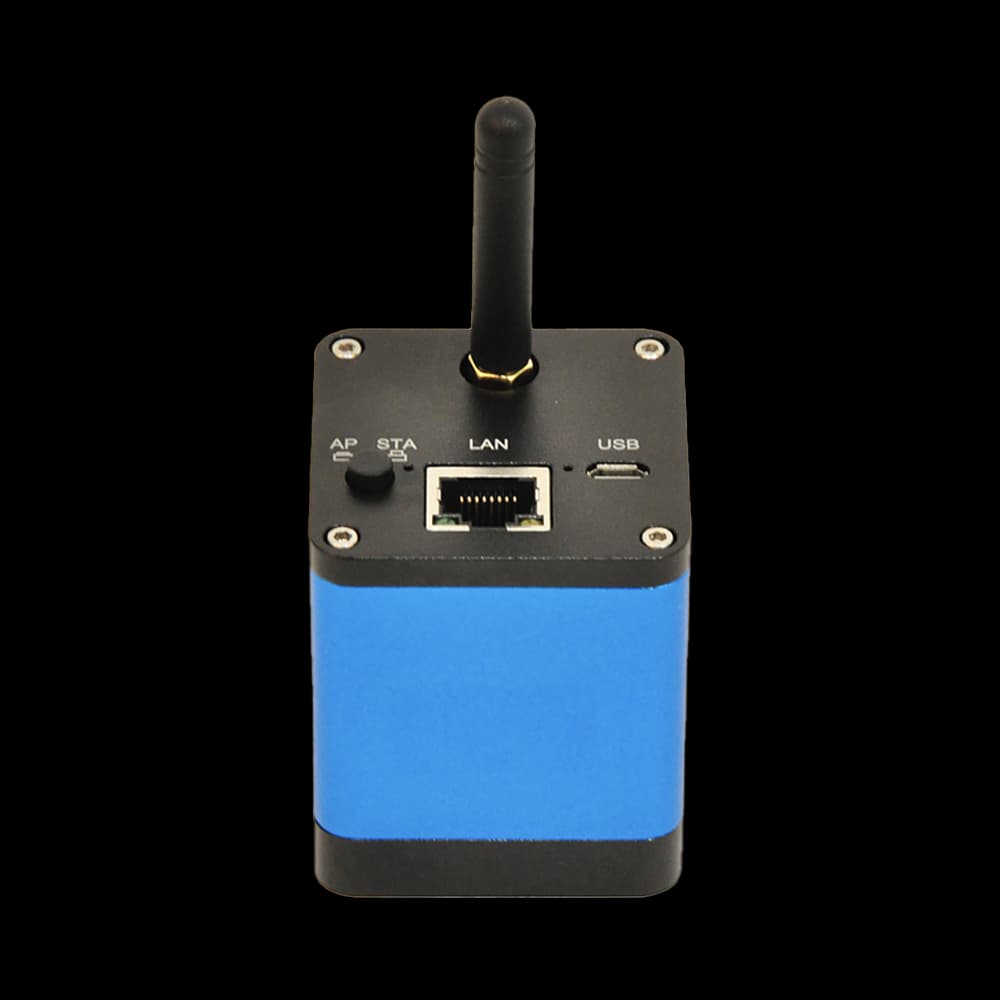

WEUCAM / WUCAM / WECAM
Compact USB3 and USB2 cameras tailored for educational microscopy, entry-level lab instruments, and OEM integration. Plug-and-play, no driver install needed on most platforms.

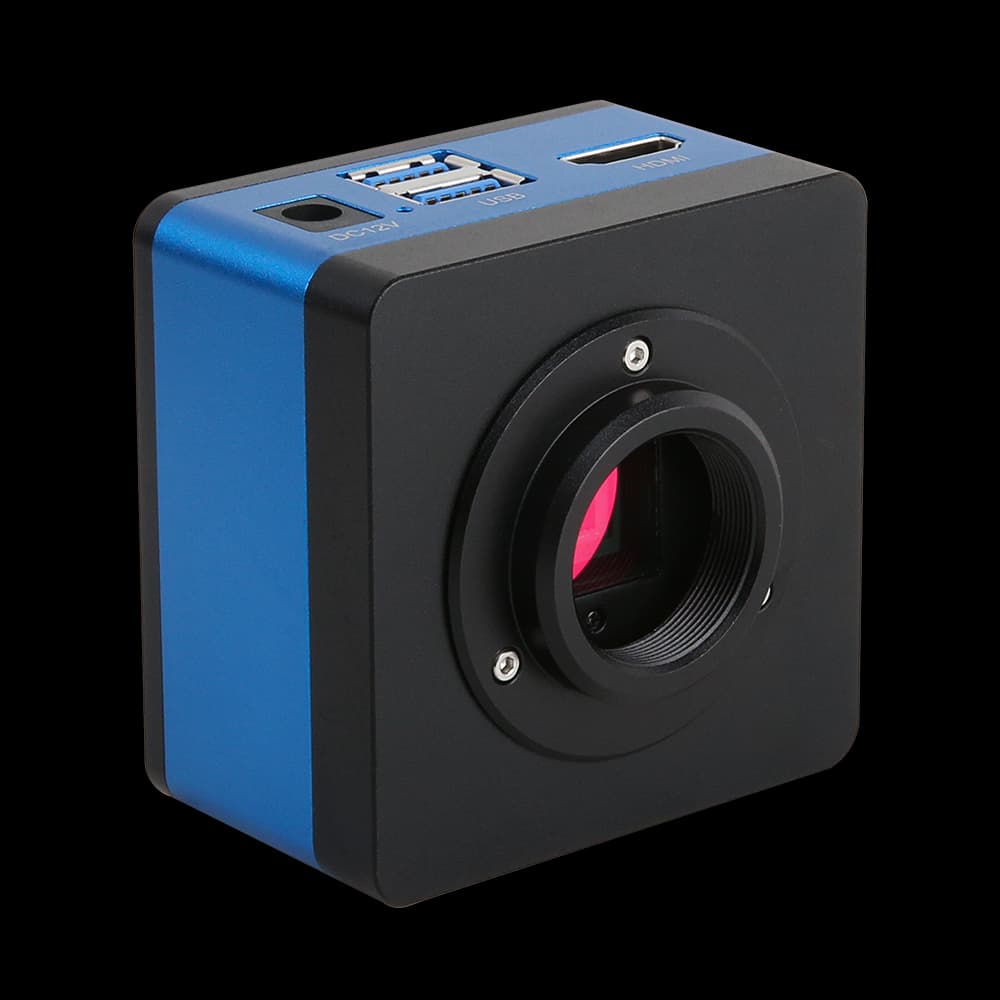

O5CAM4K / OCAM Series
High-speed 4K CMOS cameras with on-board ISP, multiple output modes (HDMI, USB, network), and an embedded ARM processor for standalone operation. For quality control lines and teaching setups.
