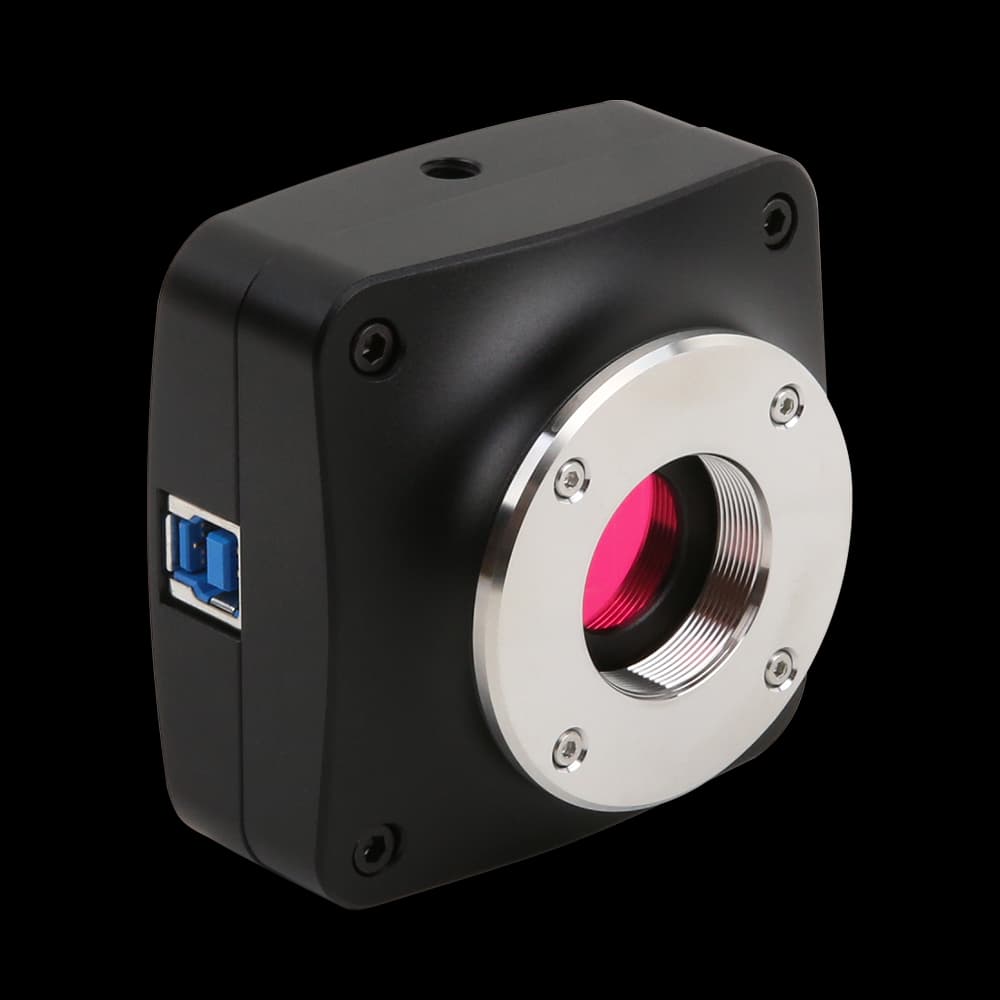

Enhanced Imaging
Microscopy Cameras for Every Lab
From compact USB 2.0 economy cameras to 20 MP USB 3.0 cameras with on-board ISP, Sony ExView HAD CCD II sensors, and ultra-low-light Starvis CMOS — a complete enhanced imaging portfolio for brightfield, phase contrast, fluorescence, and analytical microscopy.
E3ISPM Series — USB3 with On-Board HISP ISP
Integrated 12-bit Ultra-Fine Hardware Image Signal Processor (HISP VP) handles demosaic, AWB, AE, gamma, noise reduction and more — offloading the PC and delivering real-time color-accurate RAW output. Available in global shutter (GS) and rolling shutter (RS) variants from 12.4 MP to 20.4 MP. USB 3.0.
E3ISPM20400KPA
E3ISPM20000KPA
E3ISPM18000KPA
E3ISPM12400KPA
| Parameter | E3ISPM20400KPA | E3ISPM20000KPA | E3ISPM18000KPA | E3ISPM12400KPA |
|---|---|---|---|---|
| Sensor | Sony IMX541 GS (Color) | Sony IMX183 RS (Color) | Sony Special RS (Color) | Sony IMX545 GS (Color) |
| Resolution (pixels) | 20.4 MP (4496 × 4496) | 20 MP (5440 × 3648) | 18 MP (4880 × 3720) | 12.4 MP (4096 × 3000) |
| Pixel Size (μm) | 2.74 × 2.74 | 2.4 × 2.4 | 1.2 × 1.2 | 2.74 × 2.74 |
| Sensor Format | 1.1" (12.32 × 12.32 mm) | 1" (13.06 × 8.76 mm) | 1/2.2" (5.86 × 4.46 mm) | 1.1" |
| Shutter | Global Shutter | Rolling Shutter | Rolling Shutter | Global Shutter |
| Max FPS @ Full Res | 17.5 fps | 15 fps | 17 fps | 17 fps |
| A/D Conversion | 8/12-bit | 8/12-bit | 8/12-bit | 8/12-bit |
| Built-in ISP (HISP VP) | ✓ 12-bit Ultra-Fine | ✓ 12-bit Ultra-Fine | ✓ 12-bit Ultra-Fine | ✓ 12-bit Ultra-Fine |
| Exposure Range | 0.03 ms – 15 s | 0.1 ms – 15 s | 0.1 ms – 15 s | 0.03 ms – 15 s |
| Data Interface | USB 3.0 | USB 3.0 | USB 3.0 | USB 3.0 |
| SDK / Platforms | Win / Linux / macOS / Android | Win / Linux / macOS / Android | Win / Linux / macOS / Android | Win / Linux / macOS / Android |
C3CMOS Series — Compact USB3 CMOS
Compact form-factor USB 3.0 cameras using Sony or OnSemi CMOS sensors. Up to 12 MP with 1.55 μm pixel pitch. Lightweight and easy to integrate into existing microscope trinoculars.
C3CMOS12000KPA
C3CMOS06600KPA
C3CMOS03100KPA
| Parameter | C3CMOS12000KPA | C3CMOS06600KPA | C3CMOS03100KPA |
|---|---|---|---|
| Sensor | Sony IMX577 (Color) | Sony IMX326 (Color) | Sony IMX335 (Color) |
| Resolution (pixels) | 12 MP (4056 × 3040) | 6.6 MP (3072 × 2160) | 3.1 MP (2104 × 1560) |
| Pixel Size (μm) | 1.55 × 1.55 | 2.0 × 2.0 | 2.5 × 2.5 |
| Sensor Format | 1/2.3" | 1/3.06" | 1/2.8" |
| Max FPS @ Full Res | 7.5 fps | 6 fps | 5 fps |
| A/D Conversion | 12-bit | 12-bit | 12-bit |
| Exposure Range | 0.1 ms – 2000 ms | 0.1 ms – 2000 ms | 0.1 ms – 2000 ms |
| Data Interface | USB 3.0 | USB 3.0 | USB 3.0 |
ECMOS / UCMOS / UA Series — USB 2.0 Economy
Cost-effective USB 2.0 CMOS cameras for brightfield microscopy. Resolutions from 0.35 MP to 14 MP. Sony Exmor CMOS sensors. Compatible with all standard trinoculars via C-mount. Ideal for education, quality control, and multi-station lab environments.
ECMOS Series
Sony Exmor USB2 economy cameras for standard brightfield work.
UCMOS Series
Ultra-high performance USB2. Hardware resolution 0.35M–12M with standard ISP pipeline.
UA Series
Slim profile for tightly-packed microscope setups. Plug-and-play on Windows/Linux/macOS.
