Astronomy Imaging
Cameras Built for the Night Sky
From deep-sky DSO imaging with full-frame cooled sensors to high-frame-rate planetary cameras and precision guide cameras. Every photon counts.
SkyEye Series — Full-Frame DSO Cooled Cameras
Sony Exmor R/RS full-frame sensors with 61 MP or 24 MP resolution. Ultra-low read noise (sub-1 e⁻ in LCG mode), 16-bit ADC, two-stage TEC cooling to −35 °C below ambient, integrated window heating (4 levels) to prevent dew at low temperatures. Zero Amp-Glow. USB 3.0 interface. Available in mono (M) and color (C).

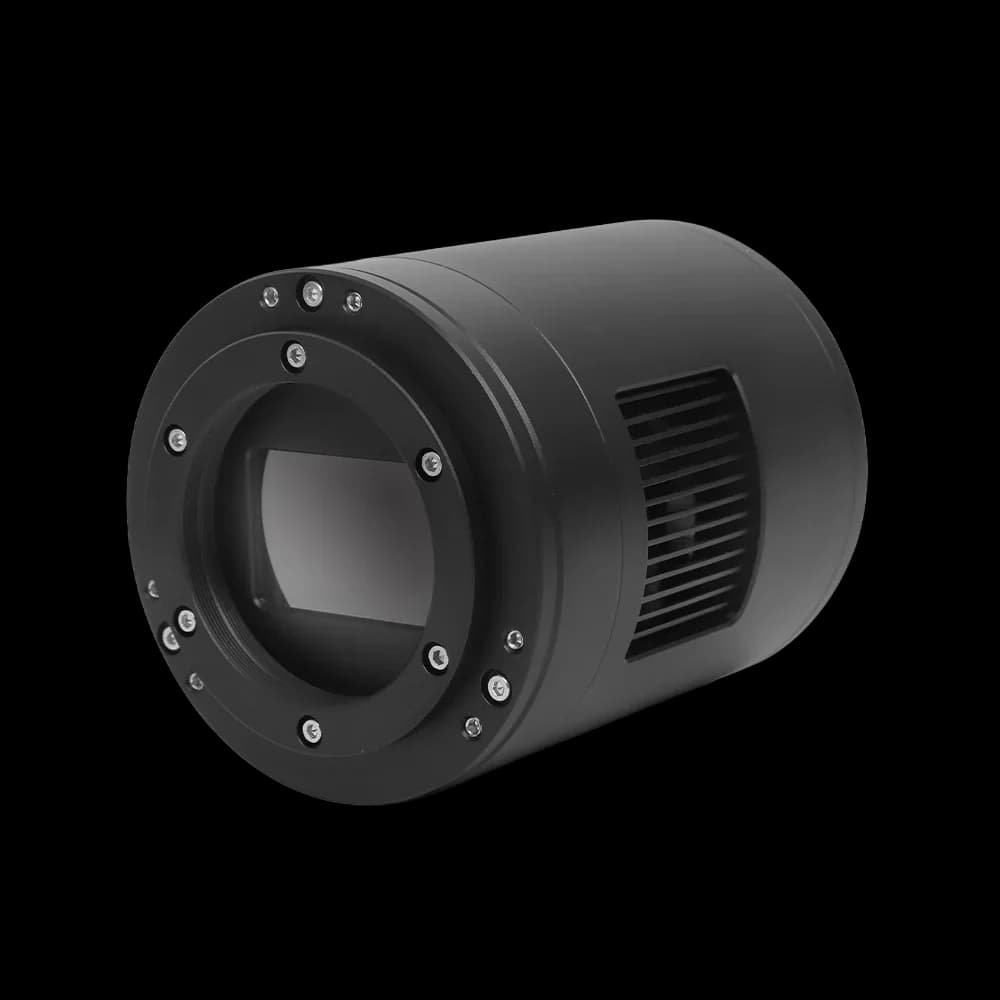

SkyEye62AM
SkyEye62AC
SkyEye24AC
| Parameter | SkyEye62AM | SkyEye62AC | SkyEye24AC |
|---|---|---|---|
| Sensor Model | Sony IMX455 (Mono) | Sony IMX455 (Color) | Sony IMX410 (Color) |
| Sensor Format | 2.7" (35.98 × 23.99 mm) | 2.7" (35.98 × 23.99 mm) | 2.7" (36.02 × 24.00 mm) |
| Resolution (pixels) | 9568 × 6380 (61 MP) | 9568 × 6380 (61 MP) | 6064 × 4040 (24 MP) |
| Pixel Size (μm) | 3.76 × 3.76 | 3.76 × 3.76 | 5.94 × 5.94 |
| Max Frame Rate (8-bit) | 6.2 fps | 6.2 fps | 16 fps |
| ADC (bit) | 16 | 16 | 14 |
| Dynamic Range (dB) | 88.3 | 85.8 | 87.3 |
| Read Noise (e⁻) | 2.8 – 0.9 | 2.58 – 0.89 | 4.48 – 0.3 |
| Peak QE | > 80% | > 80% | > 80% |
| Full Well (ke⁻) | 51 | 51 | 104 |
| SNR (dB) | 47.1 | 47.0 | 50.2 |
| HCG / LCG switching | ✓ | ✓ | ✓ |
| Zero Amp-Glow | ✓ | ✓ | ✓ |
| Max Cooling (ΔT) | ≥ 35 °C | ≥ 35 °C | ≥ 35 °C |
| Window Heating | 4 levels | 4 levels | 4 levels |
| Spectral Range | 380–690 nm (IR-cut) / 380–1100 nm | 380–690 nm (IR-cut) / 380–1100 nm | 380–690 nm (IR-cut) / 380–1100 nm |
| Data Interface | USB 3.0 | USB 3.0 | USB 3.0 |
| Body (Ø × H) | Ø 89 mm × 103 mm, 718 g | Ø 89 mm × 103 mm, 718 g | Ø 89 mm × 103 mm, 718 g |
| Power Supply | DC 12 V / 3 A | DC 12 V / 3 A | DC 12 V / 3 A |
| SDK / Platforms | Win / Linux / macOS / Android | Win / Linux / macOS / Android | Win / Linux / macOS / Android |
Two-Stage TEC
Precisely controllable cooling reduces thermal noise dramatically on long-exposure nebula and galaxy frames.
Dew Prevention
Glass window heating prevents condensation on the sensor window during cold-night sessions.
Zero Amp-Glow
Engineered to eliminate amp-glow artifacts that corrupt dark sky backgrounds. (SkyEye & ATR2600–ATR432).
512 MB Buffer
4 Gb DDR3 on-camera frame buffer for uninterrupted burst capture and streaming.
